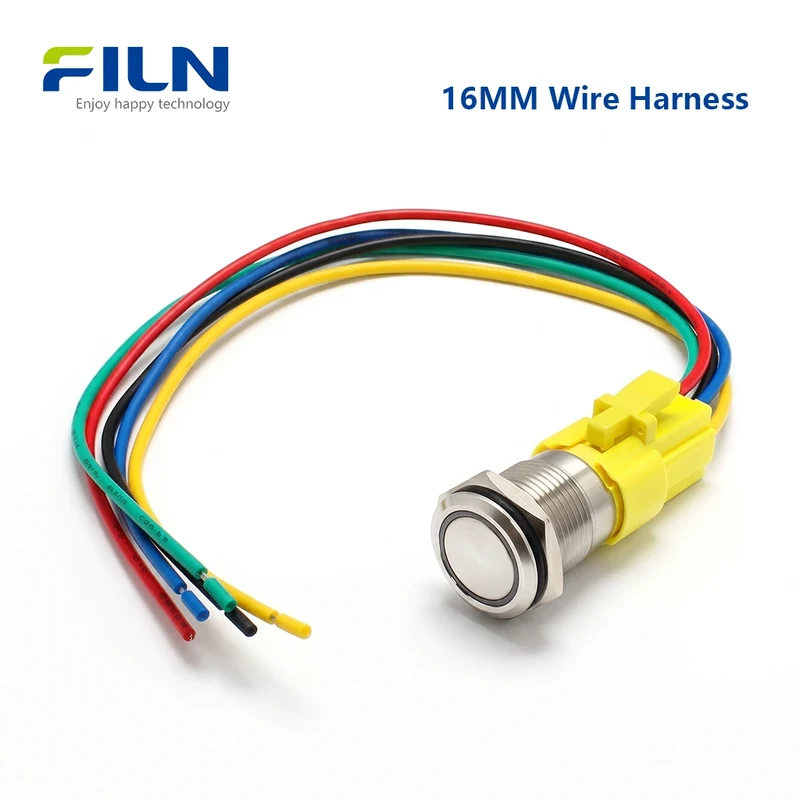

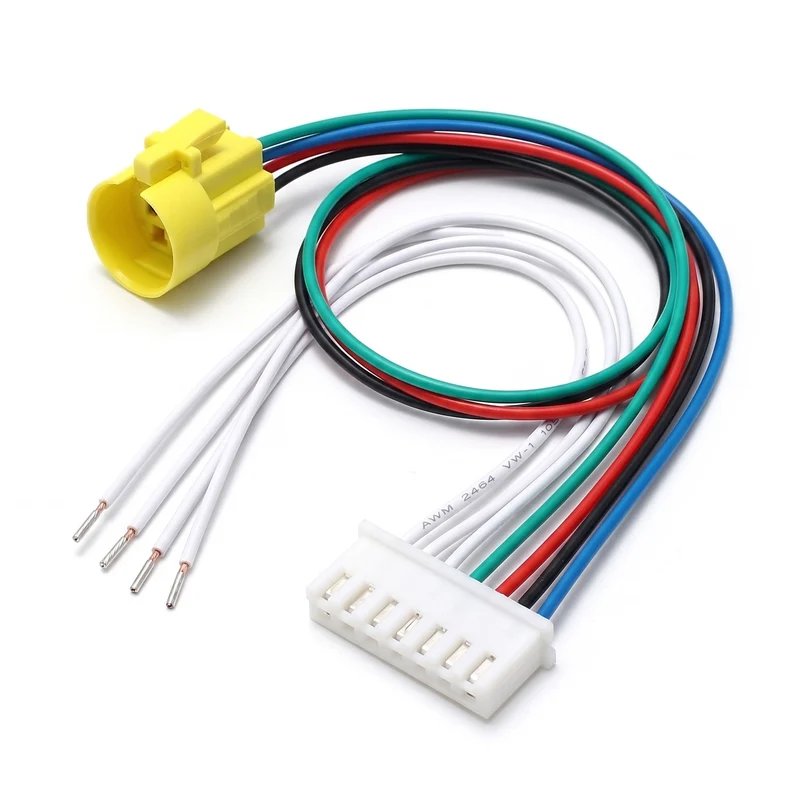

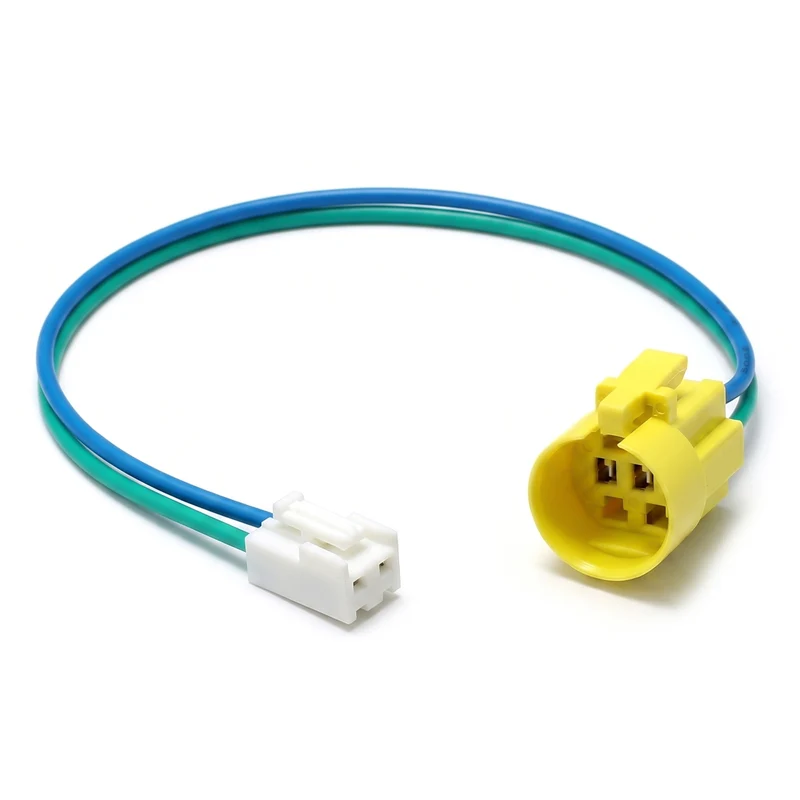

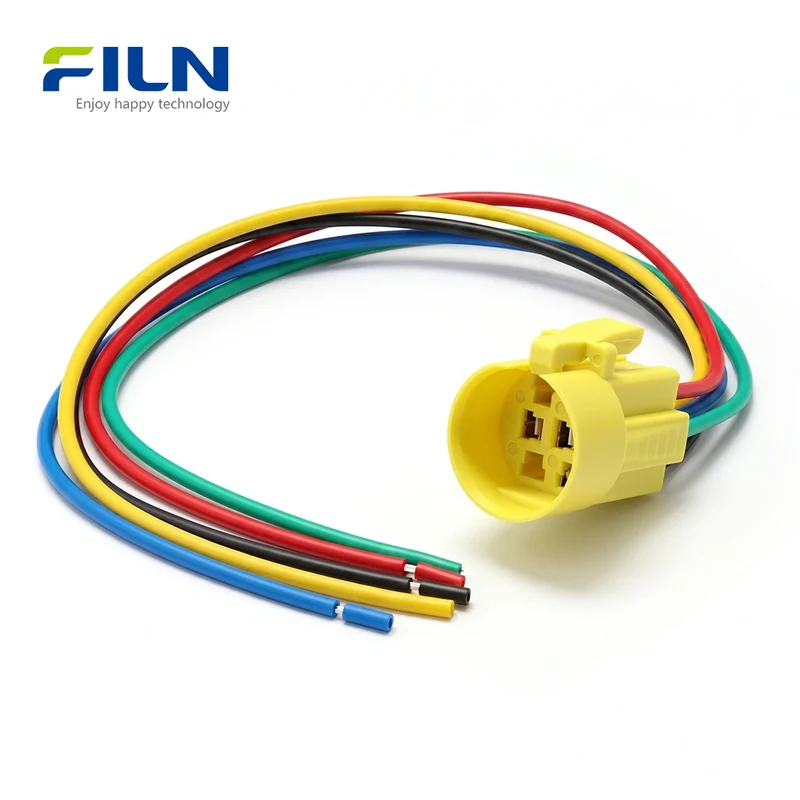

Wire Harness for Push Button Switch 16mm 19mm 22mm Waterproof IP65 Marine Car Horn FILN
Détails du produit
Product Overview
The FILN premium wire harness series (Models: FLW16-1, FLW19-1, and FLW22-1) provides an engineered, heavy-duty plug-and-play solution designed for quick installation of industrial push button switches. Manufactured by industrial switch innovator FILN, these heavy-duty 16mm-push-button-switch-connector and 19mm-led-switch-wiring-loom configurations eliminate manual soldering or individual crimping, drastically cutting assembly times and increasing wiring reliability. This premium push-button-switch-wire-harness setup is rigorously certified under ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 standards, making it highly suitable for demanding applications including industrial control panels, CNC machinery, electrical enclosures, marine systems, and automation networks. Built with flame-retardant materials, this 5-pin-push-button-switch-cable setup guarantees secure electrical continuity and outstanding performance across global B2B operations.

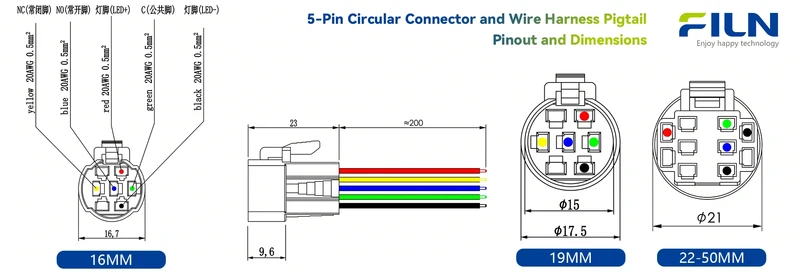

Quick Specifications
| Specification Parameter | Technical Data Details |
|---|---|

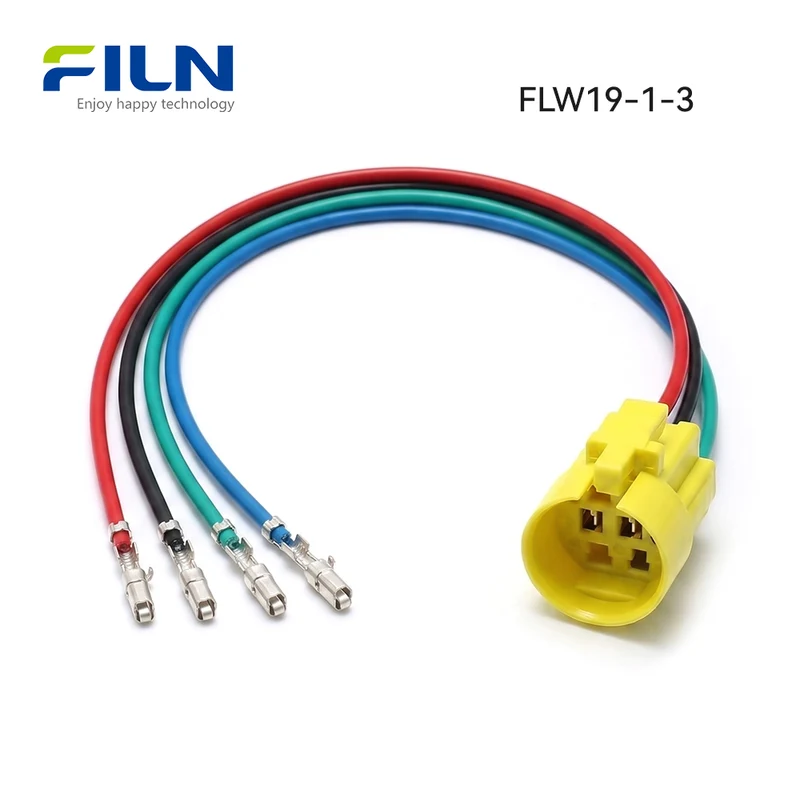

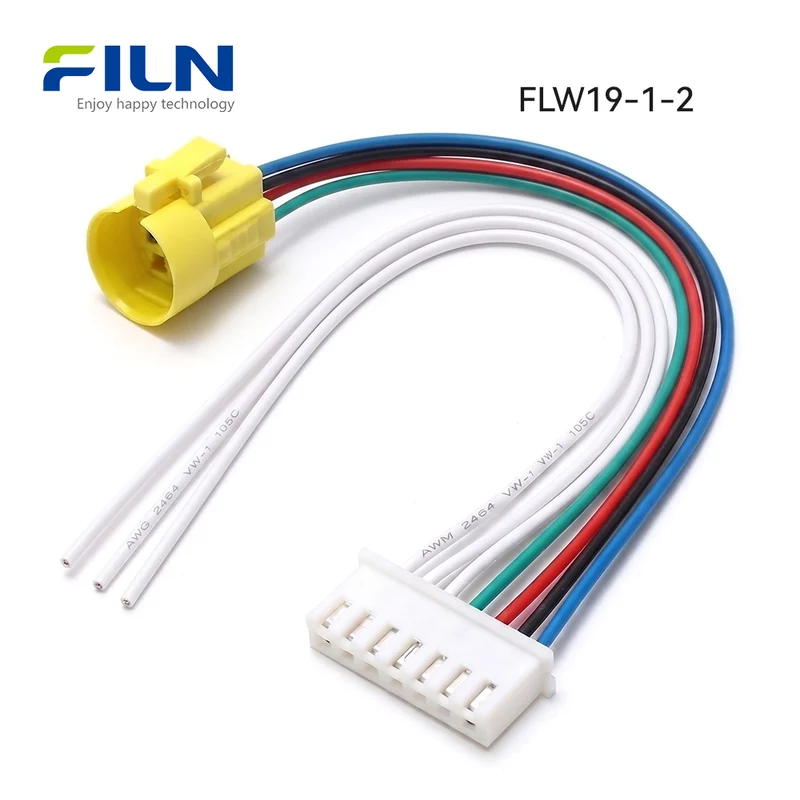

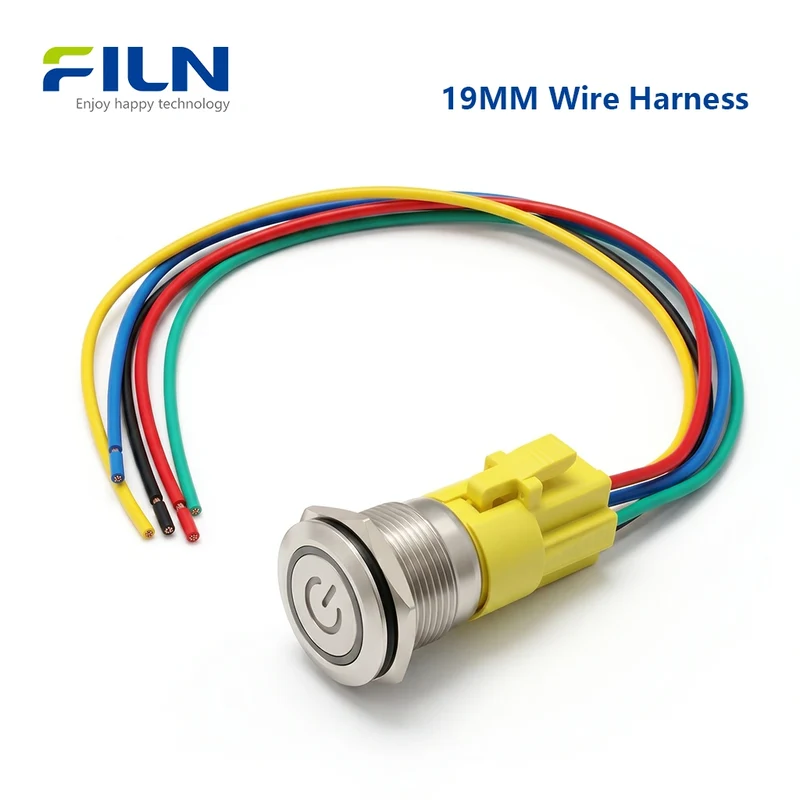

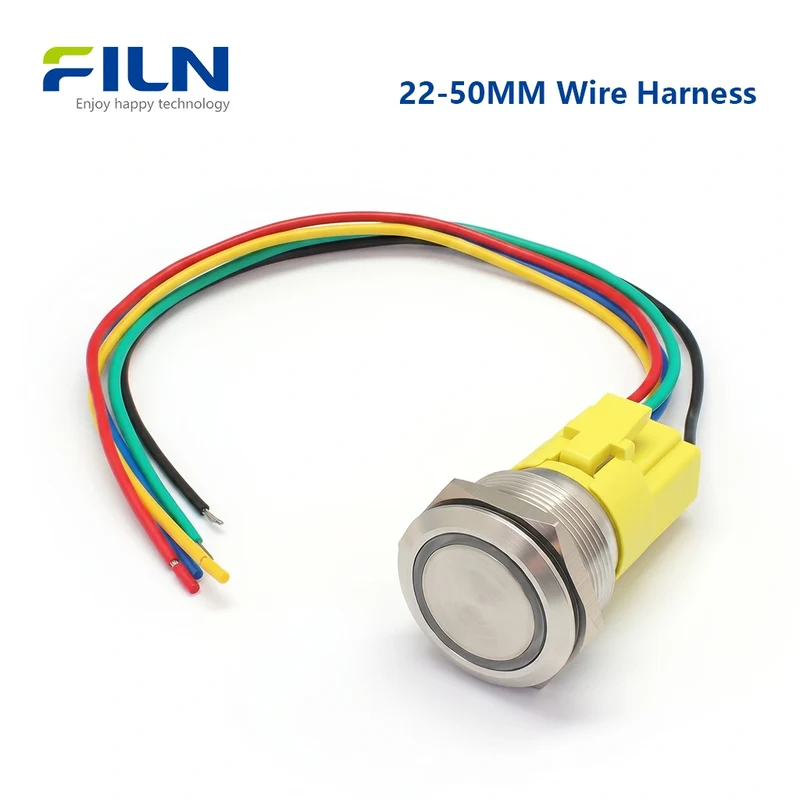

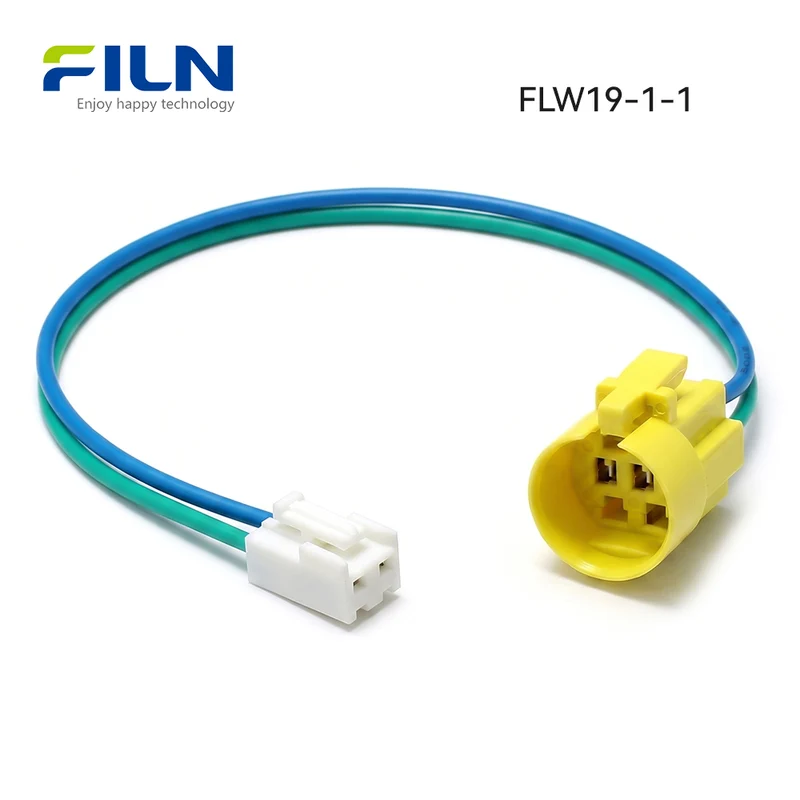

| Product Model | FLW16-1 / FLW19-1 / FLW22-1 Series |
| Compatible Switch Sizes | 16mm (0.63"), 19mm (0.75"), 22mm to 50mm Universal Range |
| Switching Mechanism Functions | Compatible with Latching and Momentary Configurations |
| LED Color Compatibility | Non-illuminated / Red / Green / Yellow / Blue / White (Custom Bi-color & Tri-color supported) |
| Switch Actuator Button Style | Flat Head / High Head Compatible |
| Wiring Connection Type | Pre-wired Quick-Disconnect Socket Type (Wire Harness) |
Component Material
| Component name | Material |
|---|---|

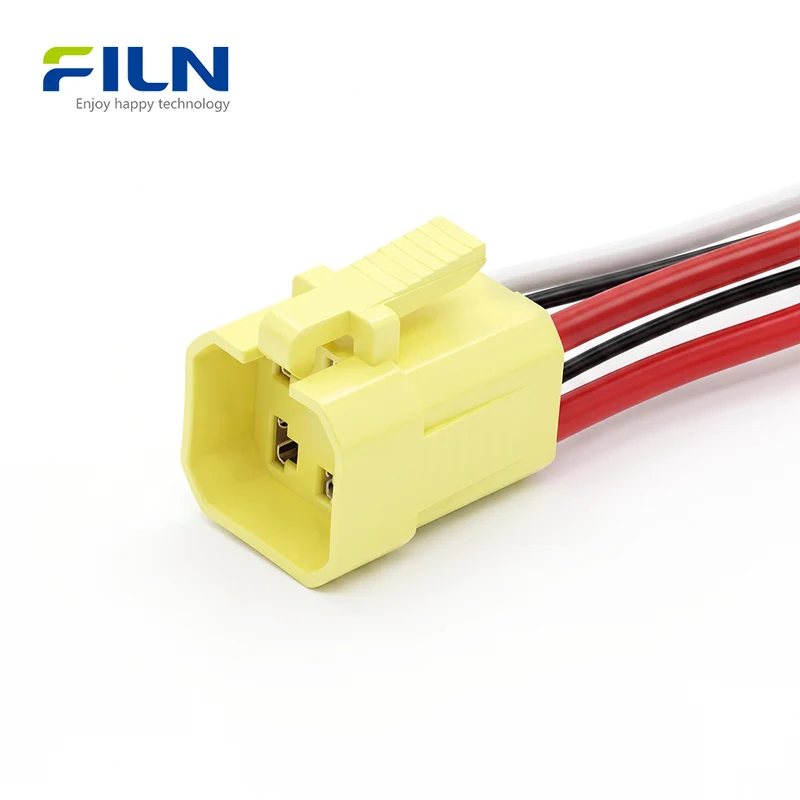

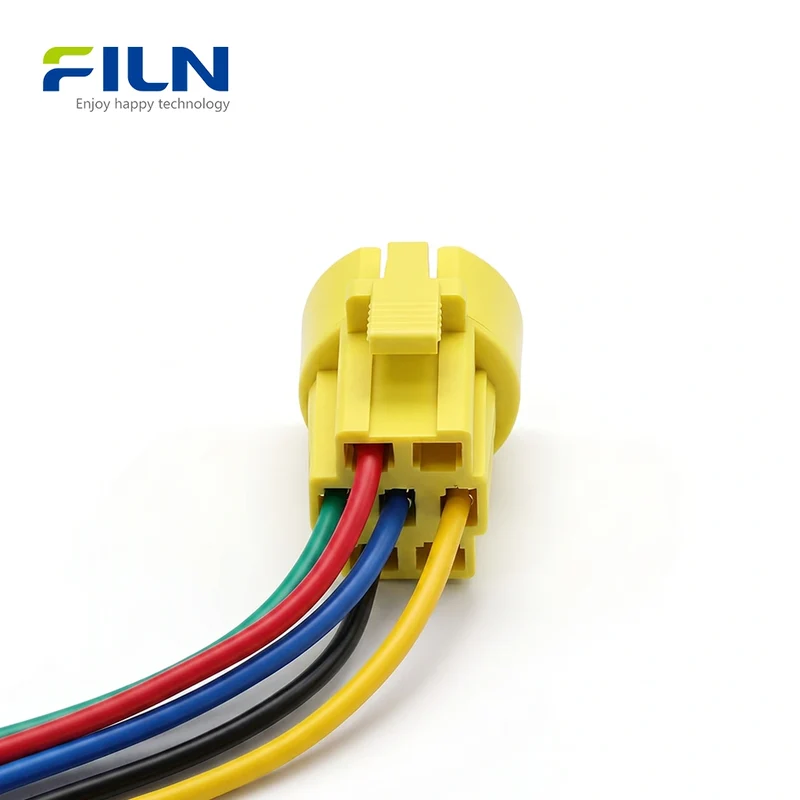

| Housing | PA66+GF20%() Nylon PA66+GF20% (Flame Retardant Yellow) |
| Terminal | Copper Alloy |
| Wire | 0.5mm2 PVC ，PVC AWG20 |
| Wire length | 20cm(Each wire 20cm) |
| Product Compliance Certifications | ISO9001, CE, VDE, RoHS, SGS, UL, IP65 |
Key Product Features
Why top-tier industrial engineers rely on the FILN pre-wired plug system:
1. Superior Protection and Extended Durability
Boasting high protective ratings of IP65 & IK08, this setup outperforms conventional IP40 connectors that lack impact or moisture mitigation. It is expertly designed to resist dust infiltration, high-pressure water spray, and mechanical impact in outdoor, harsh marine, or heavy manufacturing environments. The 500,000 mechanical operations and up to 100,000 electrical duty cycles guarantee longevity while drastically cutting plant maintenance downtime.
2. Optimized Heavy-Duty Electrical Performance
While standard 19mm switches are restricted to 2A or 3A limits, this premium option confidently sustains a 5A 250V AC/DC load. This lets systems control power-heavy gear directly, removing the need for auxiliary intermediate relays and simplifying control systems. An upgraded 1800V dielectric insulation capability provides an advanced layer of safety during electrical surges compared to common 1000V components.
3. Flexible, High-Grade Materials
Available in premium 304 Stainless Steel, H59 Brass, or 6063 Aluminum Alloy shells. The 304 Stainless Steel option provides exceptional corrosion protection for medical devices, food-safe plants, or subsea engineering applications. Inside, premium silver alloy contact points (AgCdO12) keep contact resistance exceptionally low (< 50mΩ) while mitigating electric arcing.
4. Enhanced Visualization and Fast Integration
The bright LED ring architecture delivers immediate system status feedback and operates smoothly over a broad 3V to 220V power input range. Equipped with a standard 2.8x0.5mm waterproof-switch-terminal-harness socket, this assembly eliminates time-consuming hand-soldering. Workers can simply press the socket into place, minimizing manual errors during factory throughput.
5. Ultramodern Ultra-Short Profile Design
With an overall rear body length of approximately 26.5mm, this design combines high-current 5A capacity with a tightly packed footprint. It easily slips into space-restricted control panels, handheld instrument casings, and shallow electrical breaker junction boxes.
Industrial Applications
The FILN industrial b2b-industrial-switch-wiring-harness solution is widely used across international heavy-industry and consumer sectors alike. Its rugged build ensures flawless connection performance across multiple deployment scenarios:
- Industrial Control Panels: Provides a clean, modular setup for main control consoles in automotive and chemical manufacturing lines.
- CNC Machinery: Withstands heavy vibration, cutting-fluid splashes, and flying metal debris on multi-axis milling devices.
- Automation Equipment: Ideal for sorting systems, robotic arms, and packaging systems requiring continuous operational readiness.
- Electrical Cabinets & Enclosures: Simplifies field-maintenance wire tracking in municipal distribution and HVAC systems.
- Marine Systems & Watercraft: Saltwater-resistant options shield vital dashboard controls on commercial ships and utility vessels.
- Medical Devices: Smooth metal surfaces allow for strict sanitation washes in clinical monitoring equipment and laboratory setups.
Step-by-Step Installation Guide
Follow these steps to securely mount your push button switch and snap-on socket harness to an external instrument console or machine fascia panel:
- Verify that the mounting plate template has a pre-drilled cutout matching your specific switch size (16mm, 19mm, or 22mm).
- Insert the main metallic push button switch body through the front facing side of the machine panel cutout.
- Slide the supplied hex nut over the rear threads of the switch from behind the panel, tightening it firmly to secure the switch body.

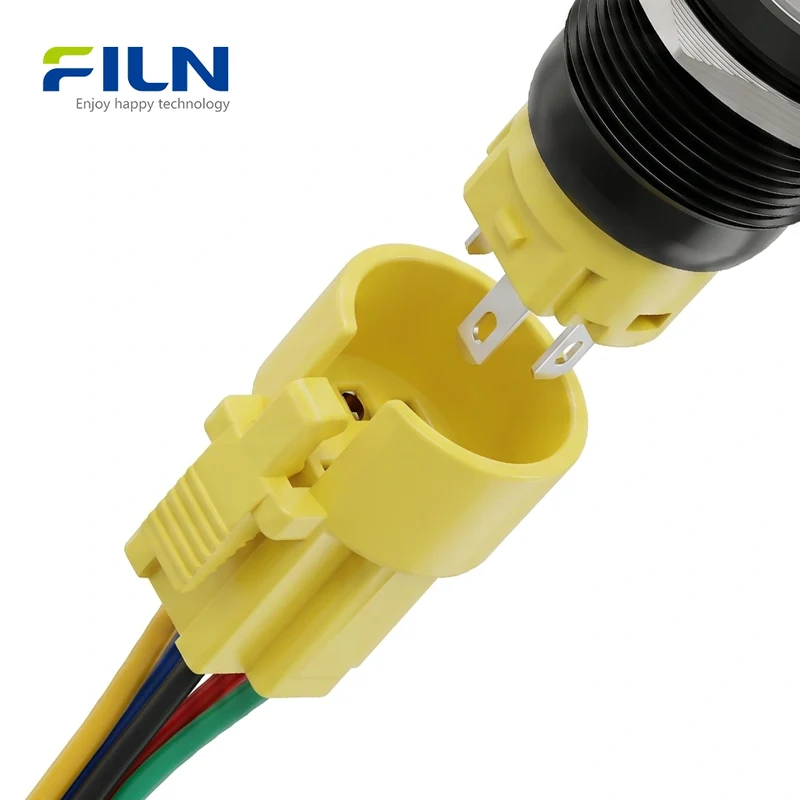

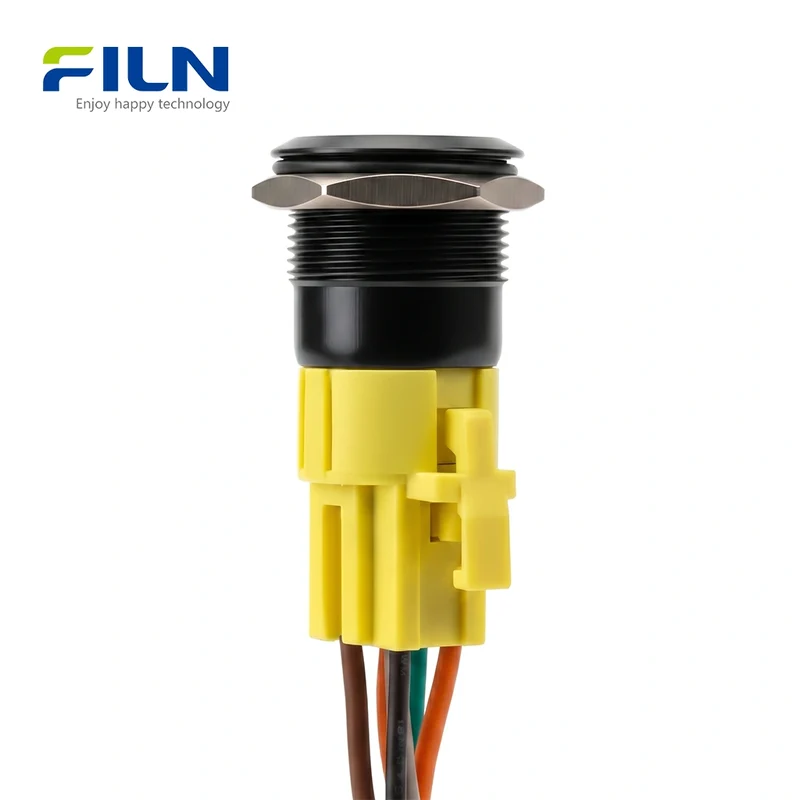

- Align the alignment channels of the yellow flame-retardant PA66+GF20% harness plug housing with the pins on the back of the switch.
- Firmly push the quick-disconnect wire harness connector onto the switch terminal pins until it clicks into its locked position.
Looking for the Perfect Premium Companion Switches?
Explore our full factory collection of heavy-duty metal buttons that match seamlessly with these quick-connect yellow wire terminal sockets.
Browse Compatible Push Button Switches Here →Push Button Switch Wiring Methods & Schematics
Depending on your specific system logic or status requirements, choose from the verified factory wire mapping schematics below:
3-PIN Push Button Switch Wiring Guide
A 3-PIN switch consists of a Common (C), Normally Open (NO), and Normally Closed (NC) terminal[cite: 1]. Use these connections to control whether a device turns on or off when pressed[cite: 2].
- C (Common): Power input terminal[cite: 2].
- NO (Normally Open): Connects only when pressed[cite: 2].
- NC (Normally Closed): Disconnects when pressed[cite: 2].
Method 1: Normally Open (NO) Connection
Logic: Device stays OFF by default and turns ON only when pressed[cite: 3].
- Wiring: Power (+) to C, Device (+) to NO[cite: 3].
- Applications: Door bells, PC power buttons, car horns, momentary starters[cite: 3].
Figure 1: Normally Open (NO) Wiring Diagram
[cite: 6] [cite: 6, 7]Method 2: Normally Closed (NC) Connection
[cite: 7, 8]Logic: Device stays ON by default and turns OFF only when pressed[cite: 8].
- [cite: 8, 9]
- Wiring: Power (+) to C, Device (+) to NC[cite: 9].
- Applications: Emergency stops, limit switches, fridge door light control[cite: 9].
Figure 2: Normally Closed (NC) Wiring Diagram
[cite: 12] [cite: 12, 13] [cite: 13, 14] [cite: 14, 15] [cite: 15, 16] [cite: 16, 17] [cite: 17, 18] [cite: 18, 19] [cite: 19, 20] [cite: 20, 21] [cite: 21, 22]| Terminals | Default | Action (Pressed) |
|---|---|---|
| C + NO | Device OFF | Device ON |
| C + NC | Device ON | Device OFF |
4-PIN LED Push Button Switch Wiring Guide
[cite: 23]A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -)[cite: 23]. Below are two ways to wire the LED indicator[cite: 23, 24].
- Horizontal Pins: The switch mechanism (Power In / Load Out)[cite: 24].
- Vertical Pins (+ / -): The LED indicator light terminals[cite: 24].
Method 1: LED Synchronized with Device (On when Active)
[cite: 24, 25]Logic: The button light only turns ON when the device is running[cite: 25]. It serves as a "Status Indicator." [cite: 26]
- Wiring: Connect LED (+) to the Output side of the switch[cite: 26, 27]. LED (-) to Power Negative[cite: 27].
- Applications: Power start buttons, car fog lights, industrial machinery[cite: 27].
- Benefit: Saves power; provides visual feedback that the system is active[cite: 27, 28].
Figure 1: LED turns ON only when button is pressed
Method 2: LED Always ON (Backlight Mode)
Logic: The button light stays ON constantly as long as there is power, regardless of the button position[cite: 29].
- Wiring: Connect LED (+) directly to the Power Positive[cite: 29, 30]. LED (-) to Power Negative[cite: 30].
- Applications: Dark environments, hallway switches, standby power indicators[cite: 30].
- Benefit: Allows you to find the switch easily in total darkness[cite: 30].
Figure 2: LED stays ON constantly (Backlight)
[cite: 31] [cite: 31] [cite: 31] [cite: 31, 32] [cite: 33] [cite: 34] [cite: 35] [cite: 36] [cite: 37] [cite: 38]| Mode | LED Status (Idle) | LED Status (Pressed) |
|---|---|---|
| Sync (Status) | OFF | ON |
| Always ON (Backlight) | ON | ON |
5-PIN LED Push Button Switch Wiring Guide
[cite: 39]A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -)[cite: 39]. This allows for four distinct control modes[cite: 39, 40].
1. Normal OFF, Sync LED (NO Connection)
[cite: 40, 41]Logic: Both the device and the LED are OFF by default[cite: 41]. Pressing the button turns ON the device and the LED simultaneously[cite: 42].
- Application: Standard start switches where the light indicates the system is running[cite: 42].
- State: Static (LED Out, Device Off) → Pressed (LED On, Device On)[cite: 42].
2. Normal ON, Sync LED (NC Connection)
[cite: 43, 44]Logic: Both the device and the LED are ON by default[cite: 44]. Pressing the button turns OFF both the device and the LED[cite: 45].
- Application: Stop buttons or emergency cut-off switches[cite: 45].
- State: Static (LED On, Device On) → Pressed (LED Out, Device Stop)[cite: 45].
3. Normal OFF, Constant LED (NO Connection)
[cite: 46, 47]Logic: The LED stays ON constantly as a backlight[cite: 47]. The device only turns ON when the button is pressed[cite: 48].
- Application: Power switches in dark environments or access control buttons[cite: 48].
- State: Static (LED On, Device Off) → Pressed (LED On, Device On)[cite: 48].
4. Normal ON, Constant LED (NC Connection)
[cite: 49, 50]Logic: The LED stays ON constantly[cite: 50]. The device is ON by default and turns OFF when the button is pressed[cite: 51].
- Application: Monitoring systems or security alarms that require constant power indication[cite: 51].
- State: Static (LED On, Device On) → Pressed (LED On, Device Stop)[cite: 51].
| Mode | LED Behavior | Device (Idle) |
|---|---|---|
| NO Sync | Lights up when pressed | OFF |
| NC Sync | Turns off when pressed | ON |
| Constant | Always ON (Backlight) | User Choice |
