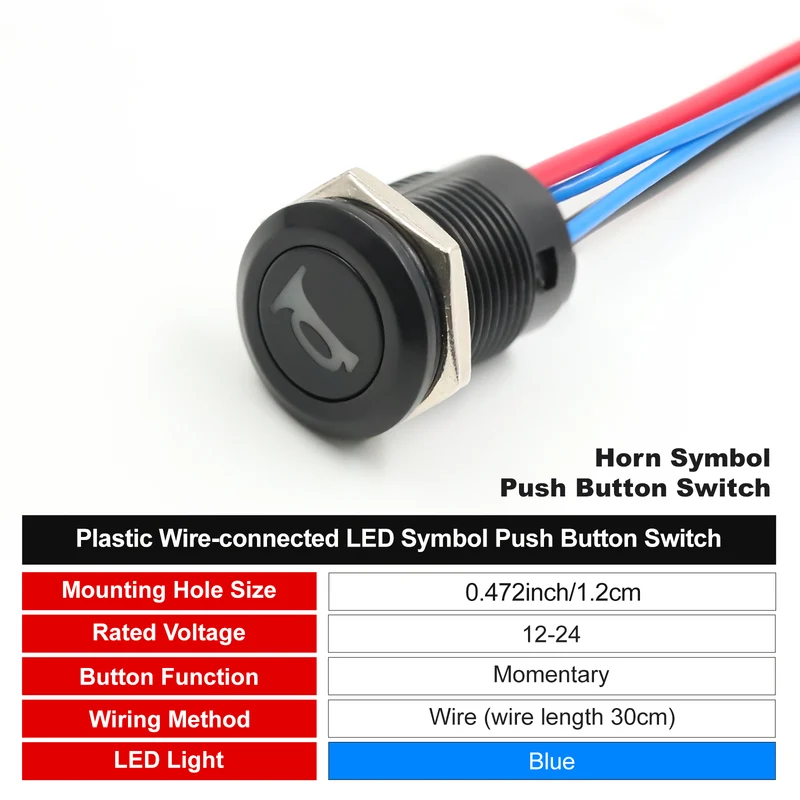

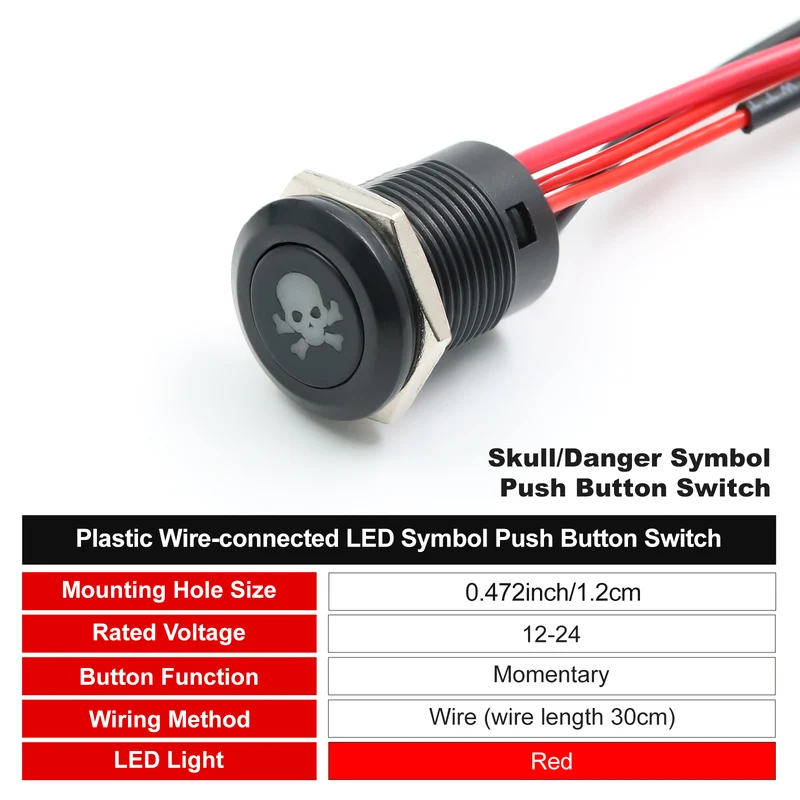

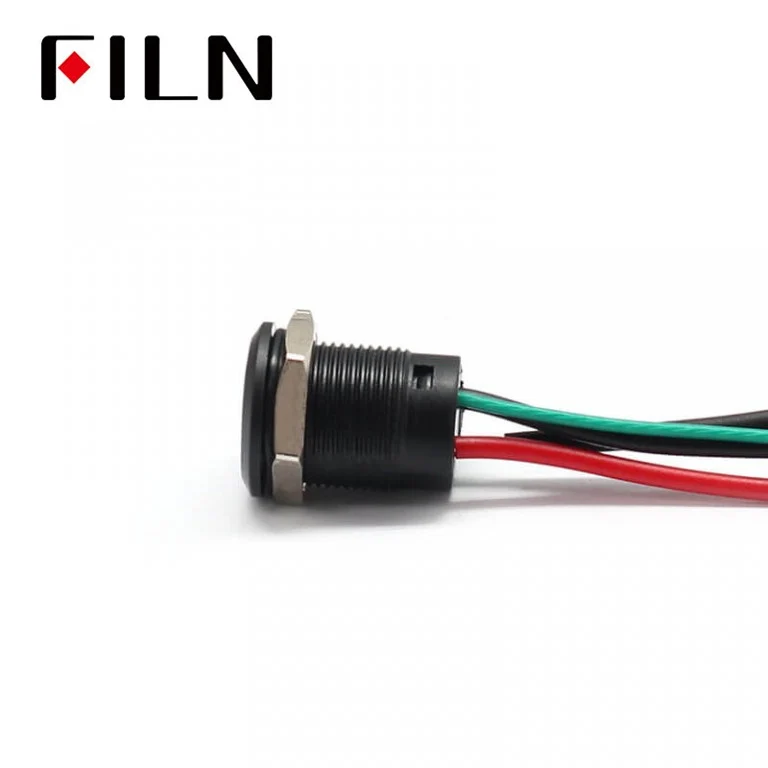

New 12MM Red Custom 12V Push Button Switches

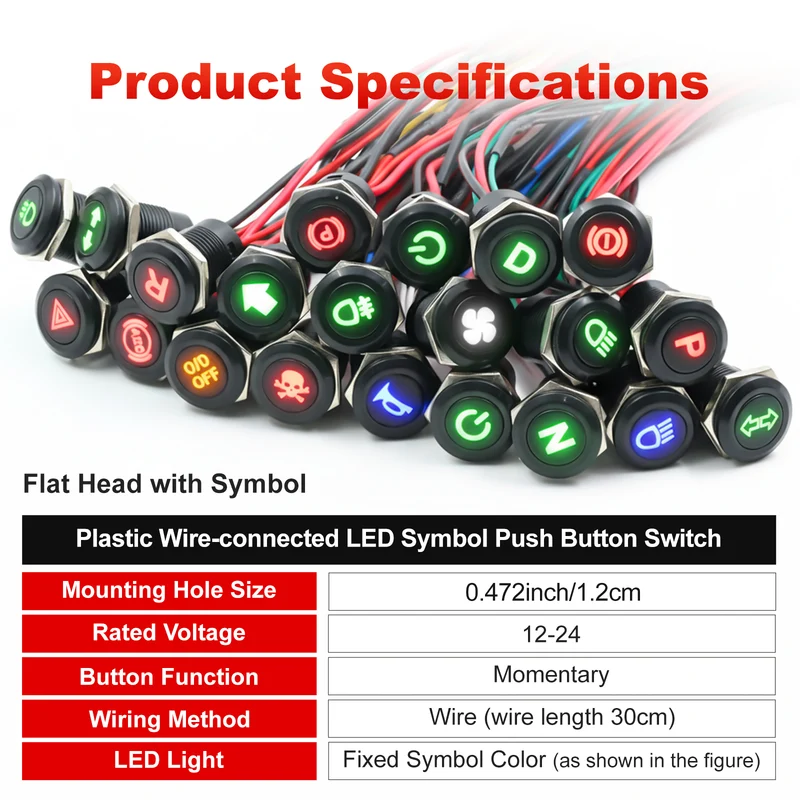

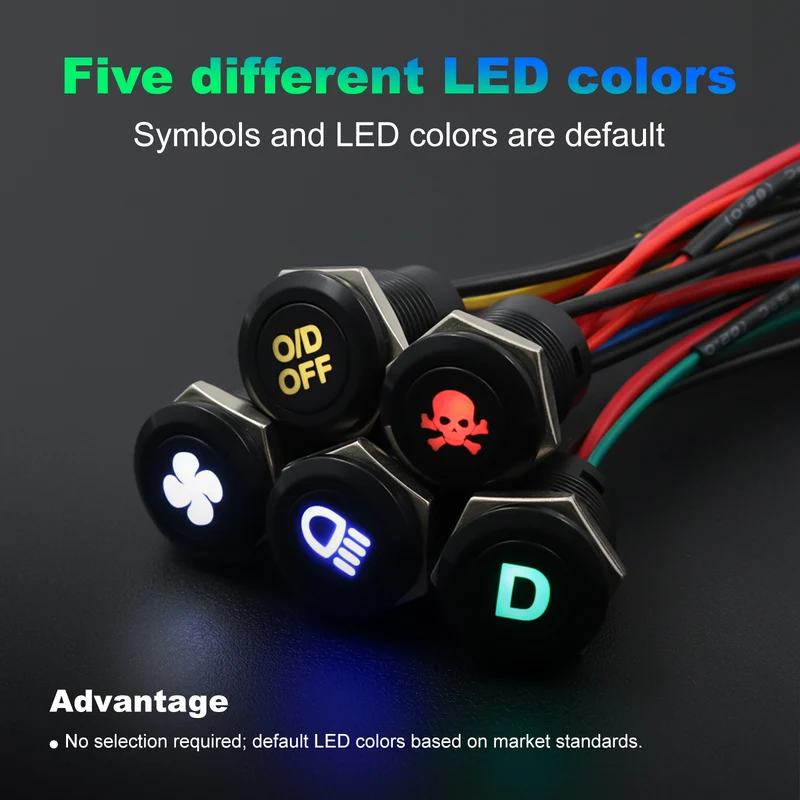

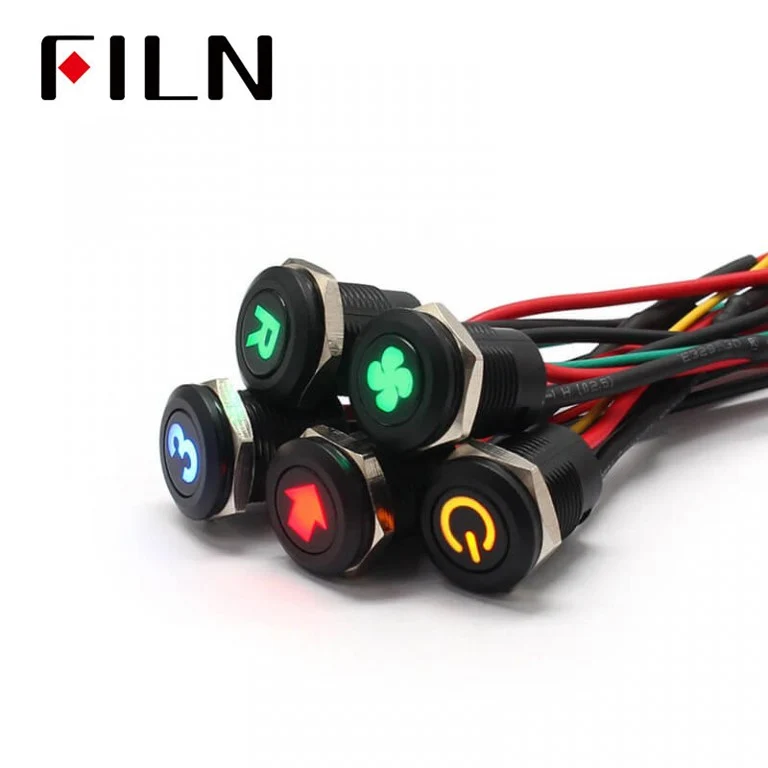

Find out the symbols you need and place an order, and send the remarks to purchase the desired LOGO. If no remarks are made, we will distribute them randomly after the 15th.

12V push button switch parameters

Production Series	FLPQ12-10FWM	Light Guide Button
Button Shape	round	Actuator	ABS plastic
Button LED Color	Black、white	Housing Sleeve	ABS plastic
Mechanical Life	The 500 thousand time	Button Pin	22AWG PVC wire(0.3MM2)
Electrical Life	The 100 thousand time	Rubber Ring	SIL silica gel
Protection Level	IP65 IK08	Nut	H59 nickel plated brass
Rated Voltage	36V（DC） 250（AC）	Housing	ABS plastic
Rated Current	1A（DC）0.5A（AC）	Light Source
Rated Power	36W（DC）125W（AC）	Resistor
Operating Temperature	-25℃~+85℃	Contact	AgCdO12
