Vendeur: YUEQING YULIN ELECTRONIC CO., LTD

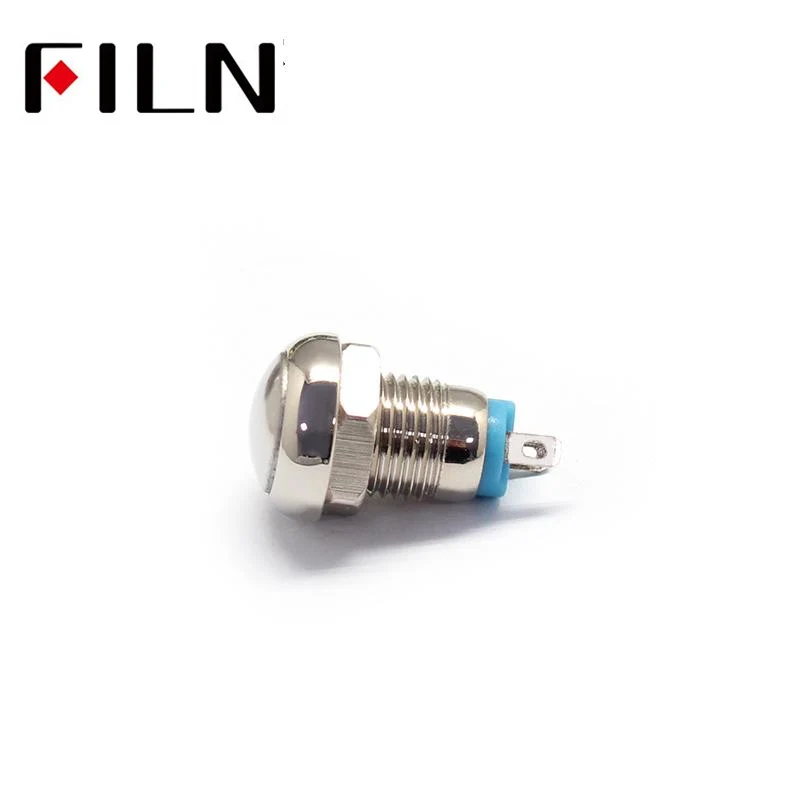

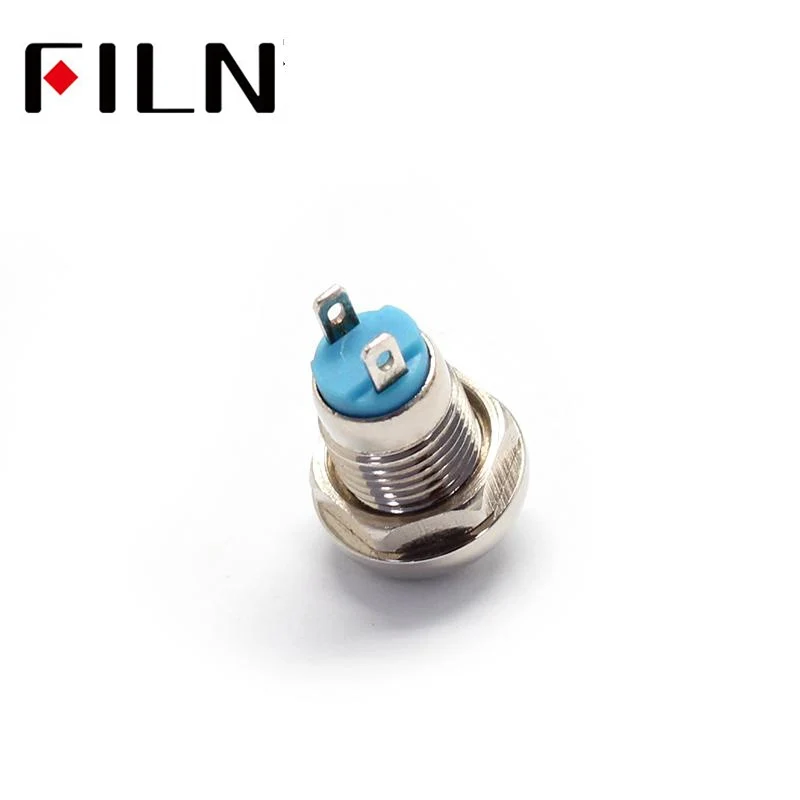

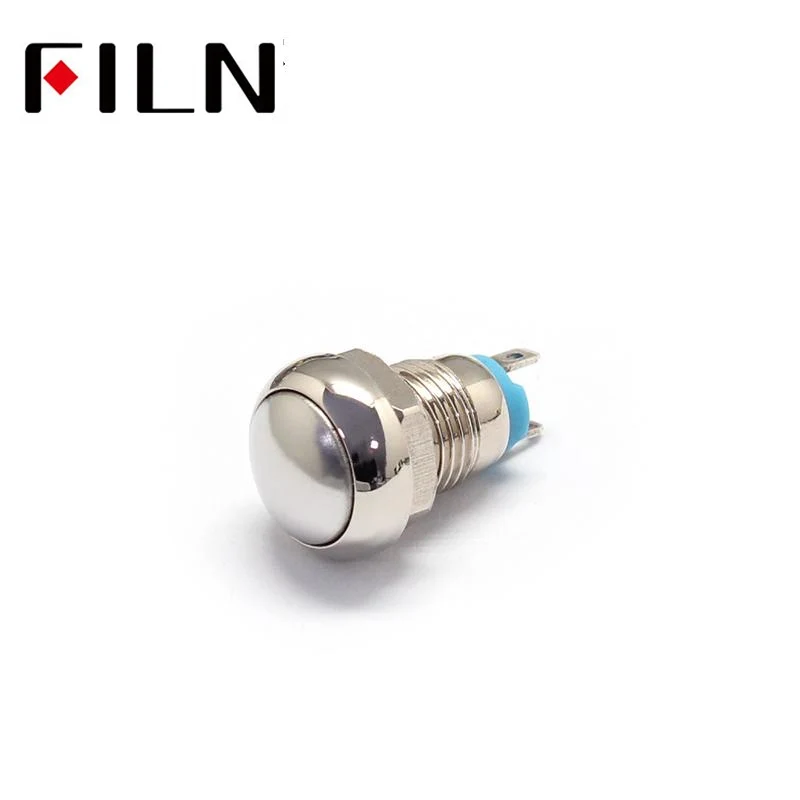

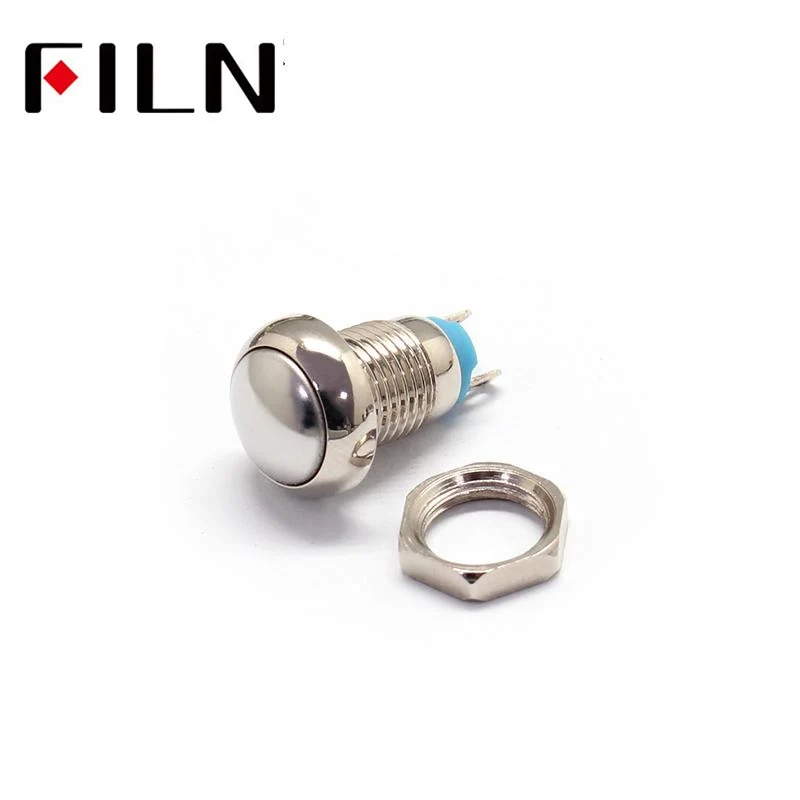

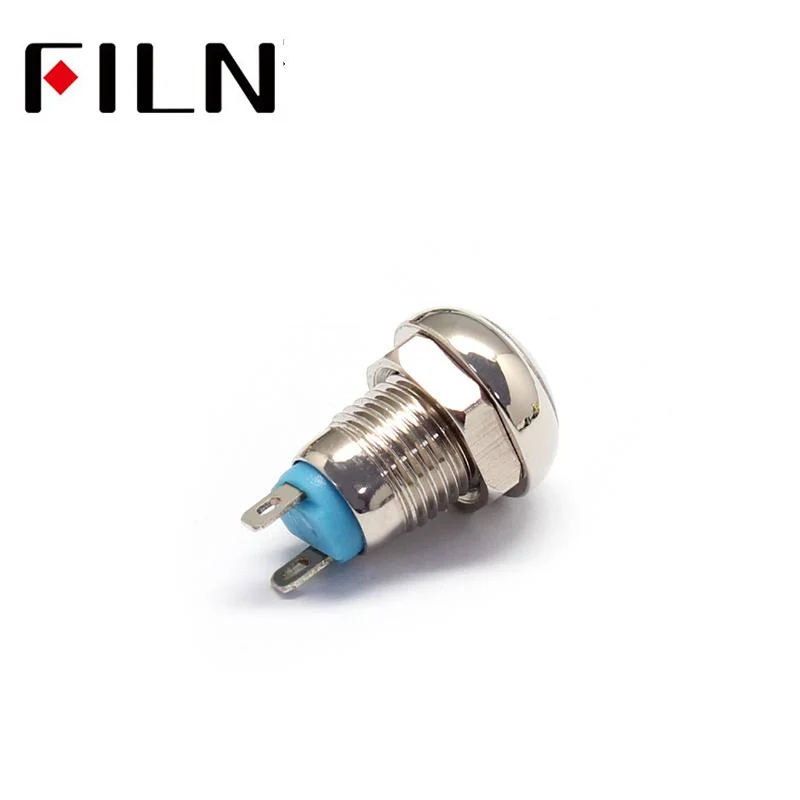

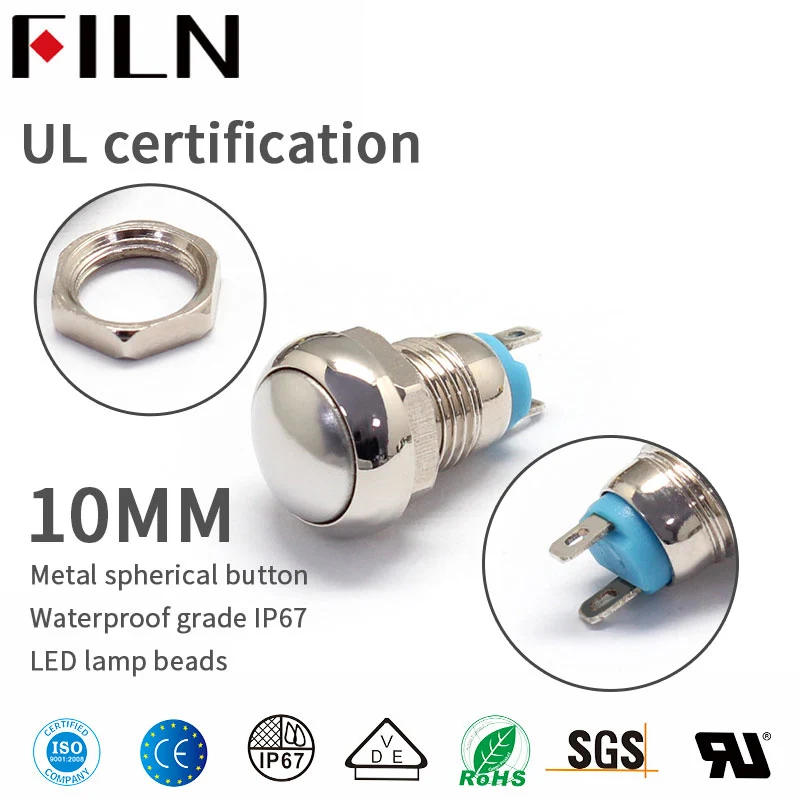

Mini Push Button Switch 10MM Momentary push button
Détails du produit
| Production Series | FLM10-10EJ | Light Guide Button | PC plastic |
| Button Shape | round | Actuator | 304 Stainless steel |
| Cutton LED Color | Red, blue, green, yellow and white | Housing Sleeve | H59 nickel plated brass |
| Mechanical Life | The 300 thousand time | Button Pin | H62 Copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP65 IK09 | Nut | H59 nickel plated brass |
| Rated Voltage | 36V DC | Housing | PA66+GF20% nylon |
| Rated Current | 1A | Light Source | LED |
| Rated Power | 36W | Resistor | Metal film |
| Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
