Vendeur: YUEQING YULIN ELECTRONIC CO., LTD

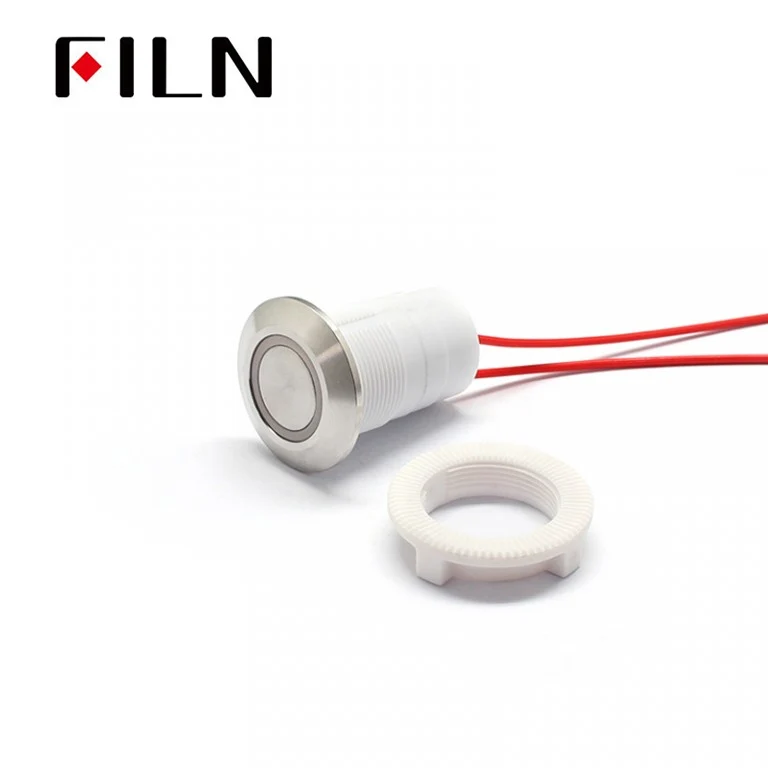

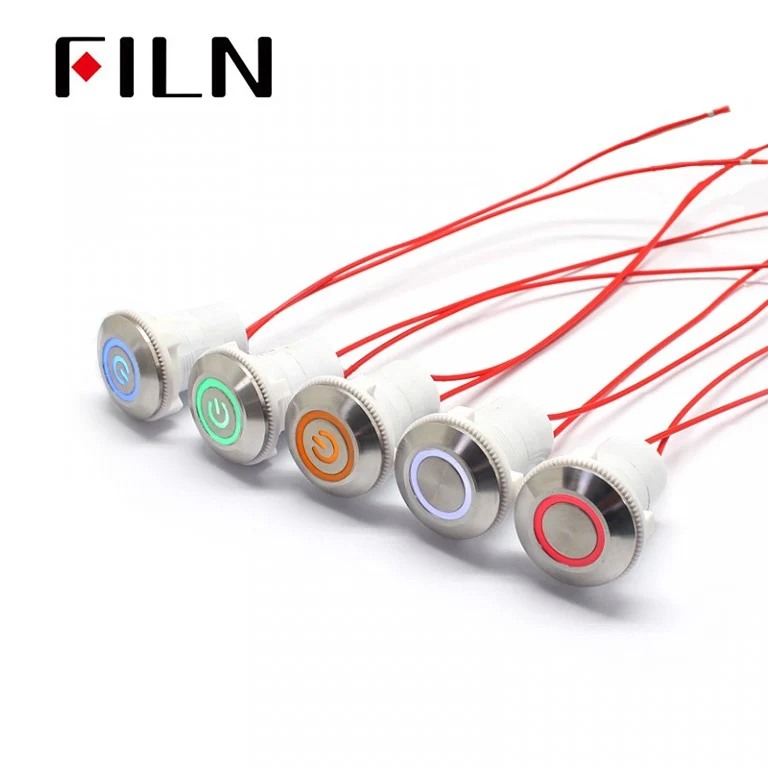

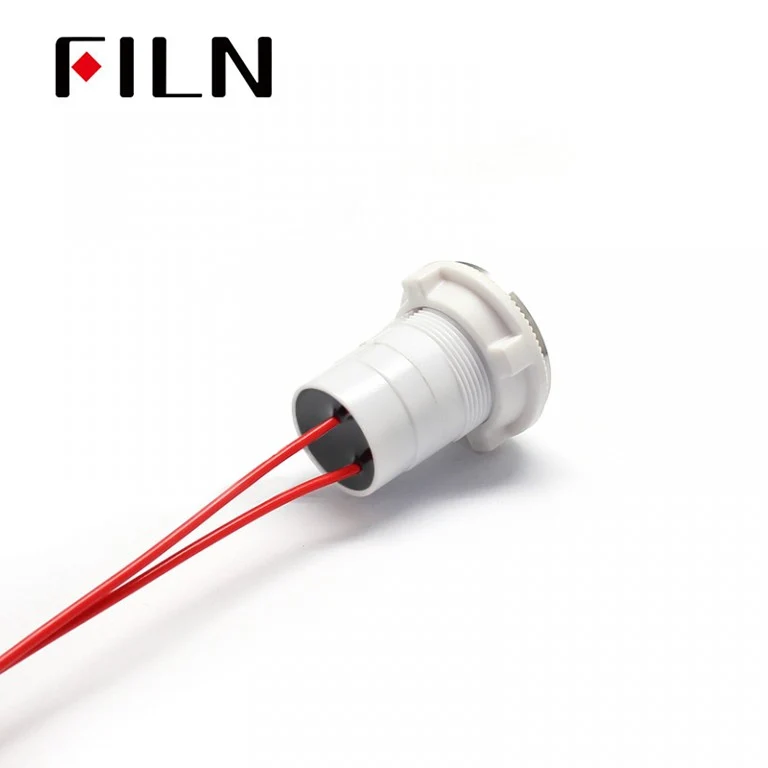

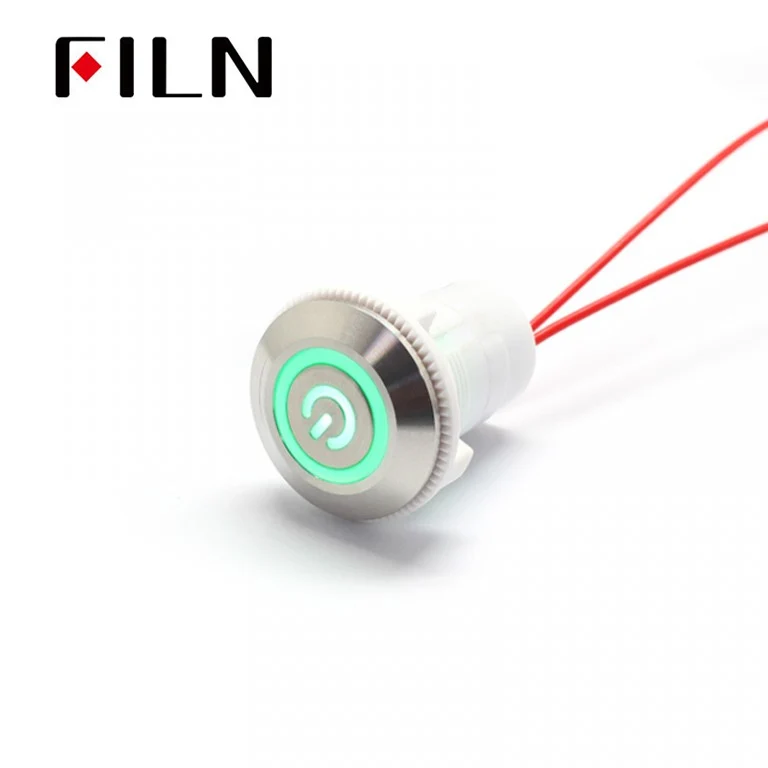

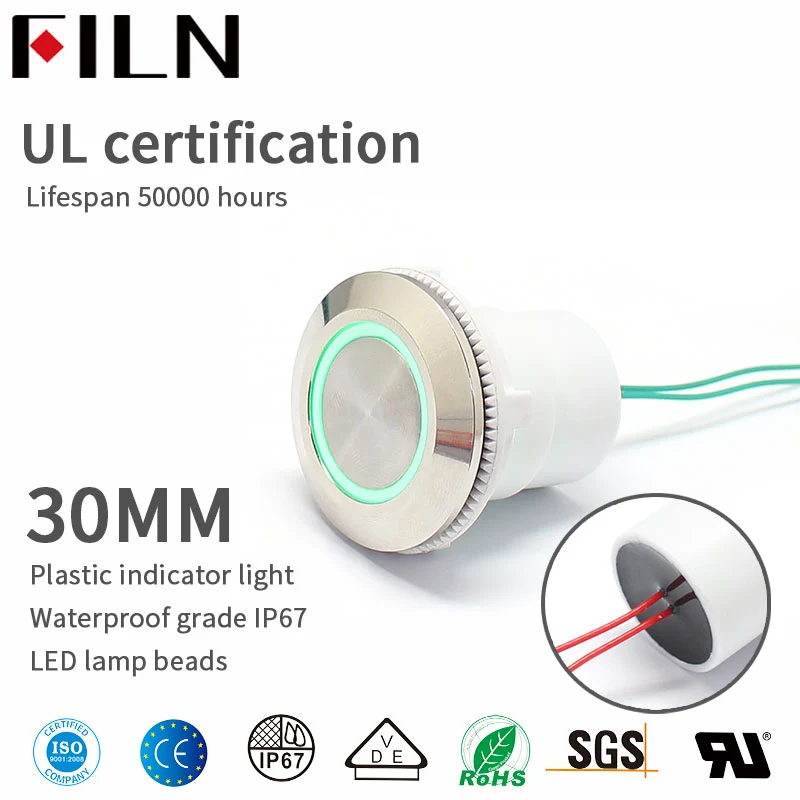

FLP30 30mm Indicator Light Double Color RED GREEN Plastic LED With Wire Flat Head Ring
Détails du produit
| Items | Parameter |
| Indicator voltage | 3V-220V |
| Indicator rated current | ≤20mA |
| Rated power | 300W(DC)
2500W(AC) |
| Insulation and voltage resistance | 3000V |
| Point resistance | ≤50mΩ |
| Isolation resistance | ≥100MΩ |
| Operating temperature | -25℃~+85℃ |
| IP degree (head) | IP67 IK09 |
| Indicator color | Red blue green yellow white |
Product drawings
Component material
|
Component name |
material |
| Light guide button | PC plastic |
| Button | 304Stainless steel |
| Housing reducing ring | H59 nickel plated brass/304Stainless steel |
| Sleeve | PC flame retardant high temperature/high wear resistance/high viscosity/high impact resistance |
| Rubber ring | SIL silica gel |
| Nut | PC flame retardant high temperature/high wear resistance/high viscosity/high impact resistance |
| Housing | PC flame retardant high temperature/high wear resistance/high viscosity/high impact resistance |
| Light source | LED lights |
| Resistor | Metal film |
| Contacts | AgCdO12 |
| Button lamp foot | 0.3mm²PTFE Teflon wire |
