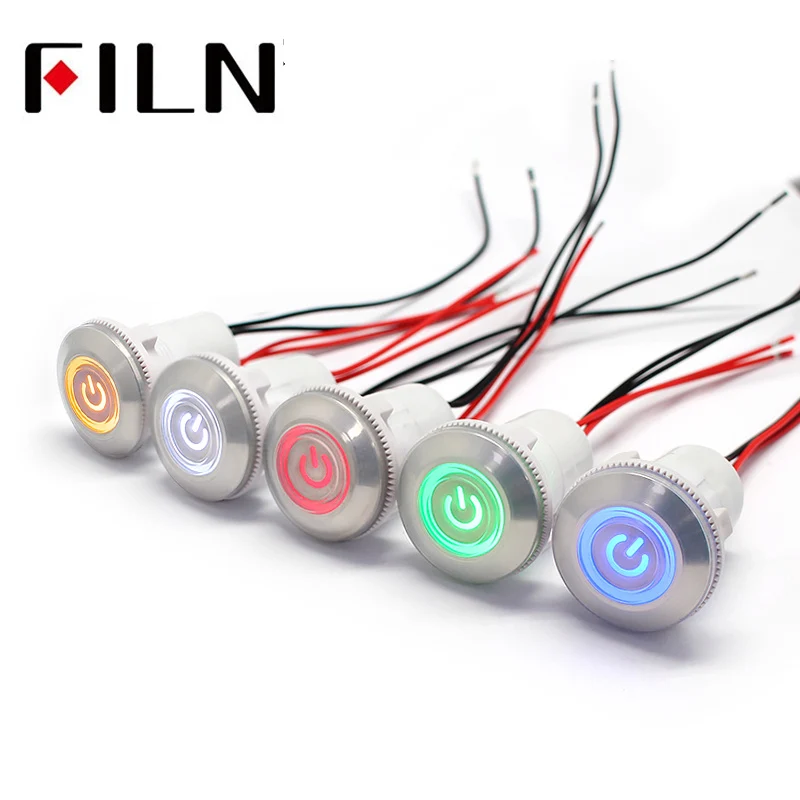

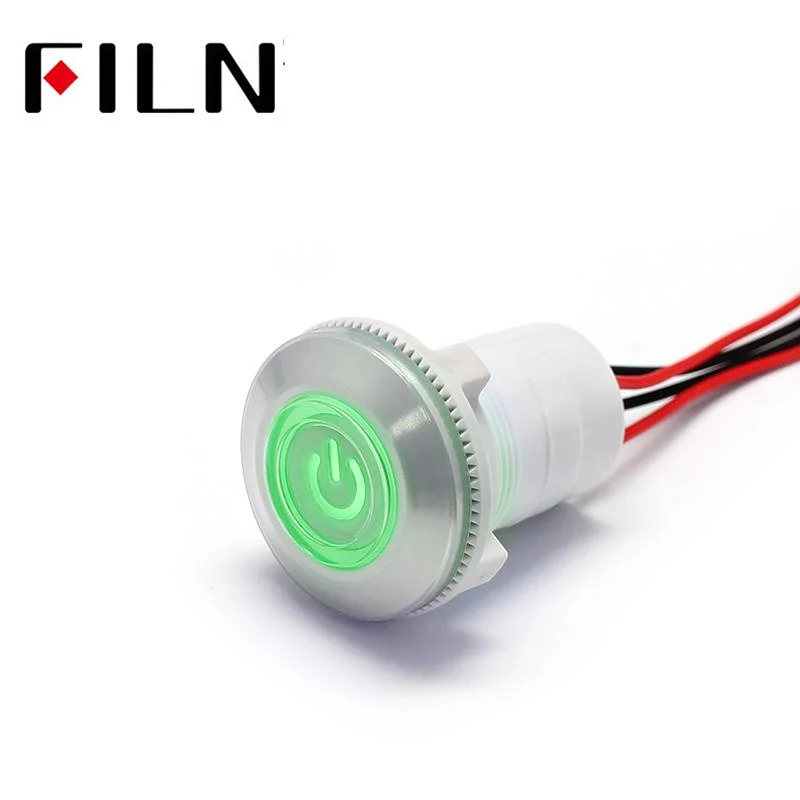

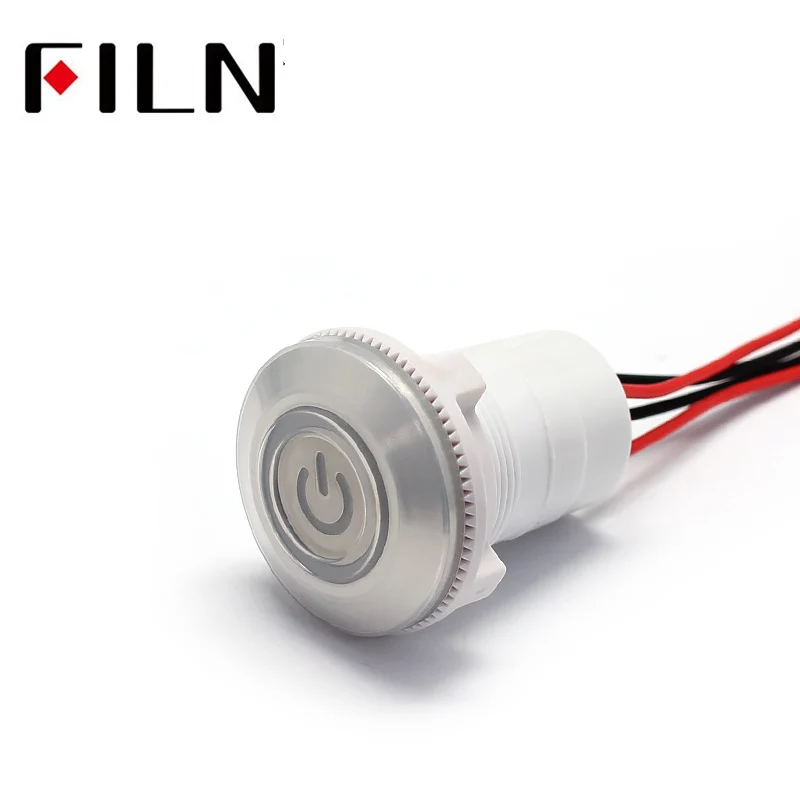

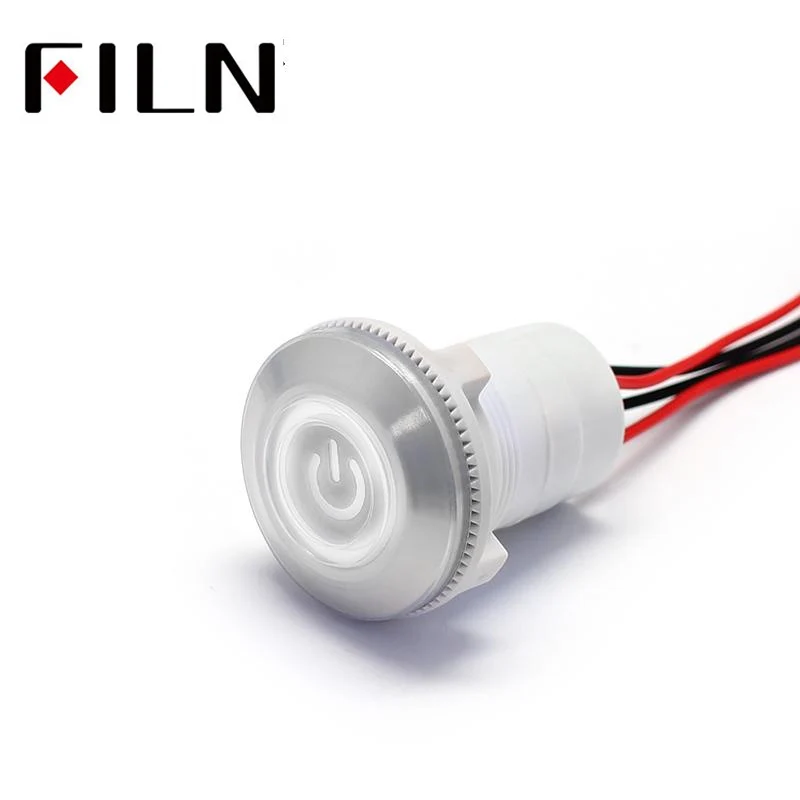

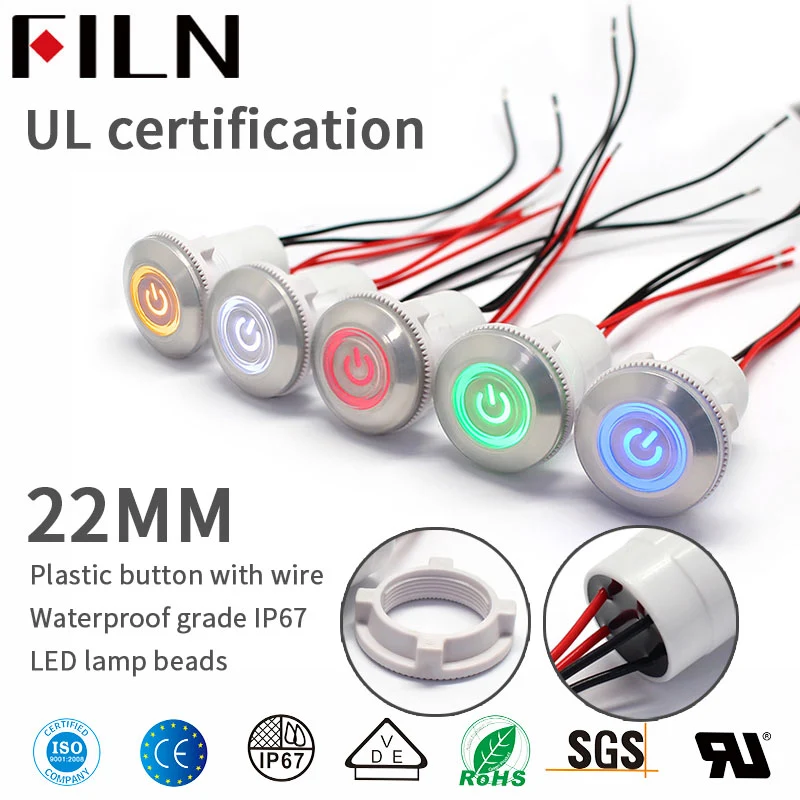

22mm red green Plastic Push Button Switch power mark locking and Momentary switch

• 100% money back guarantee
• Quickly customize products in 21 days
• Fast delivery

 Momentary (Self-Rest: When press the Button,Switch On. When release,the actuator return.)

 Latching (Self-Locking: When press the button,the actuator stay in position until pressed again.)

FLM22-FW-1-EC003 Push Button Switch Product Introduction

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

The waterproof rating of the push button switch is IP67, and the mounting hole size is 22MM.

The voltage of the push button switch can be 3V, 6V, 12V, 24V, 110V, 220V, 250V, 380V, etc.

22MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

You can also customize the button switch for two-color lights and three-color lights.

Product specifications

Production series	FLP30-20FEW	Light guide button	PC plastic
button shape	round	actuator	304 Stainless steel
button led color	Red blue green yellow white	Housing sleeve	H59 nickel plated brass/304Stainless steel
Mechanical life	The 500 thousand time	Button pin	H62 copper alloy
electrical life	The 100 thousand time	rubber ring	SIL silica gel
protection level	IP67 IK08	nut	H59 nickel plated brass
Rated voltage	60V（DC）250V(AC)	housing	PA66+GF20% nylon
rated current	5A（DC）10A(AC)	Light source	LED
rated power	300W（DC）2500W(AC)	Resistor	Metal film
Operating temperature	-25℃~+85℃	contact	AgCdO12
