Vendeur: YUEQING YULIN ELECTRONIC CO., LTD

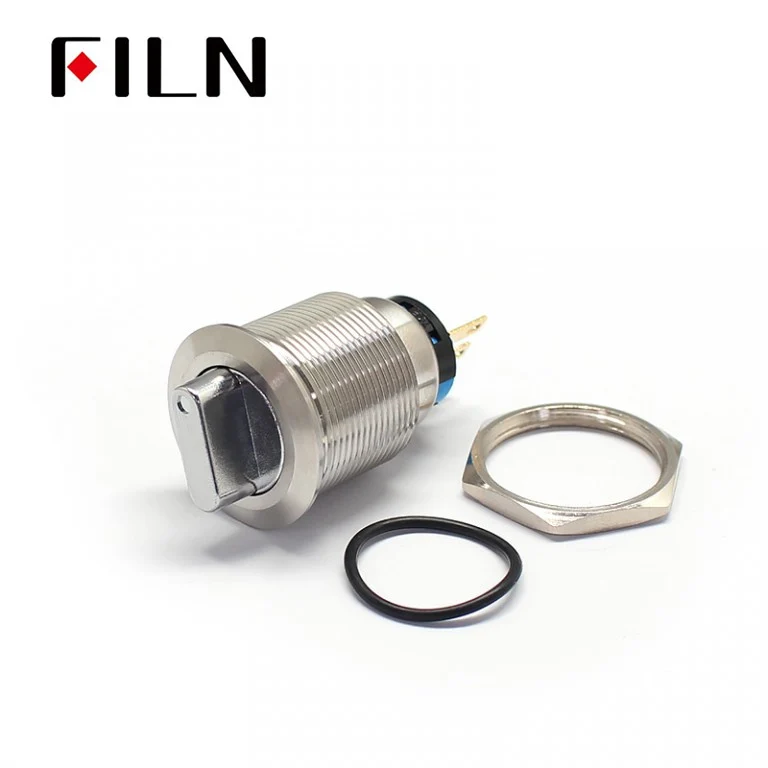

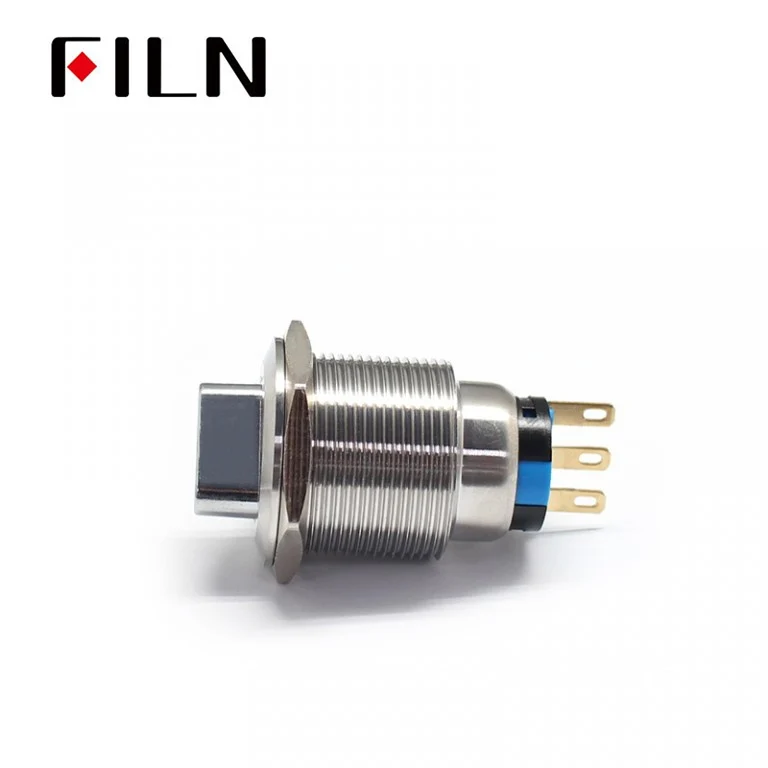

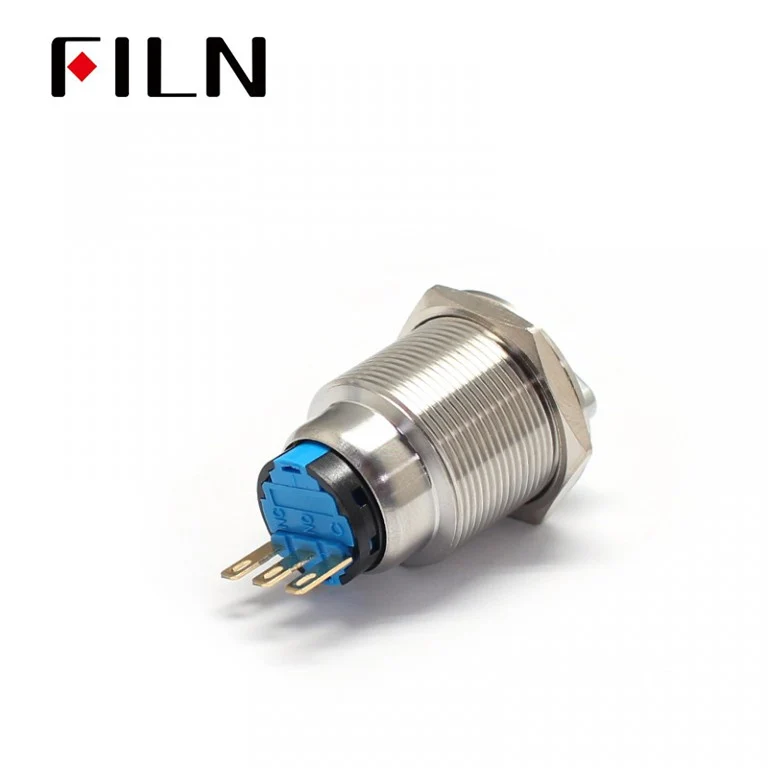

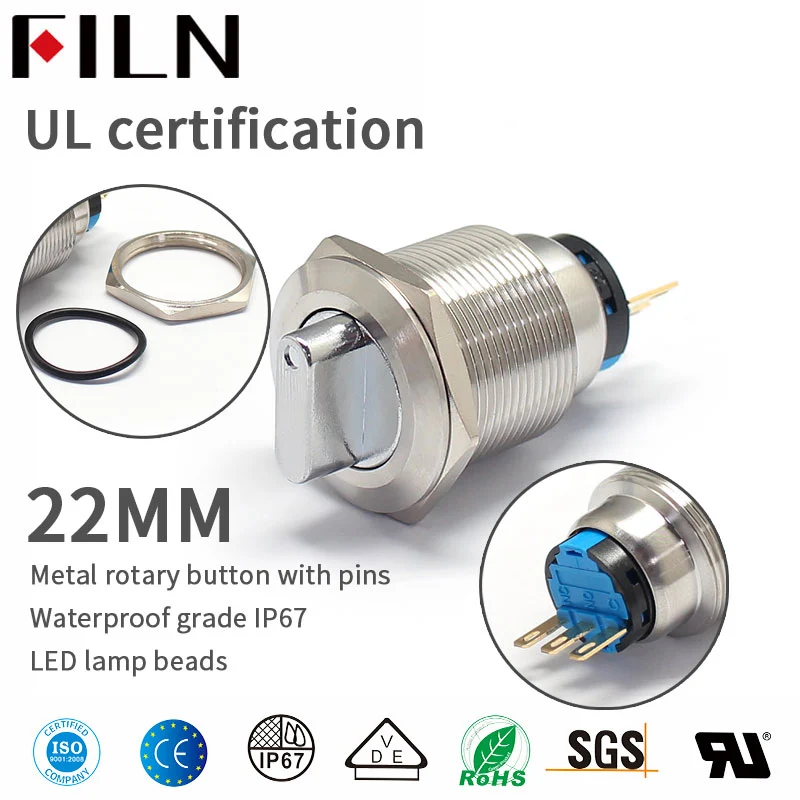

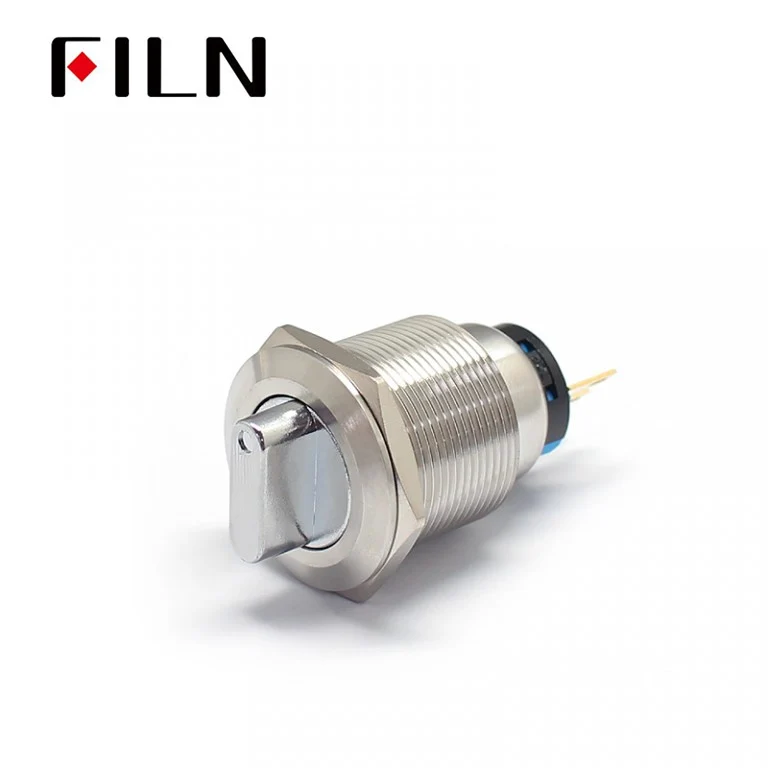

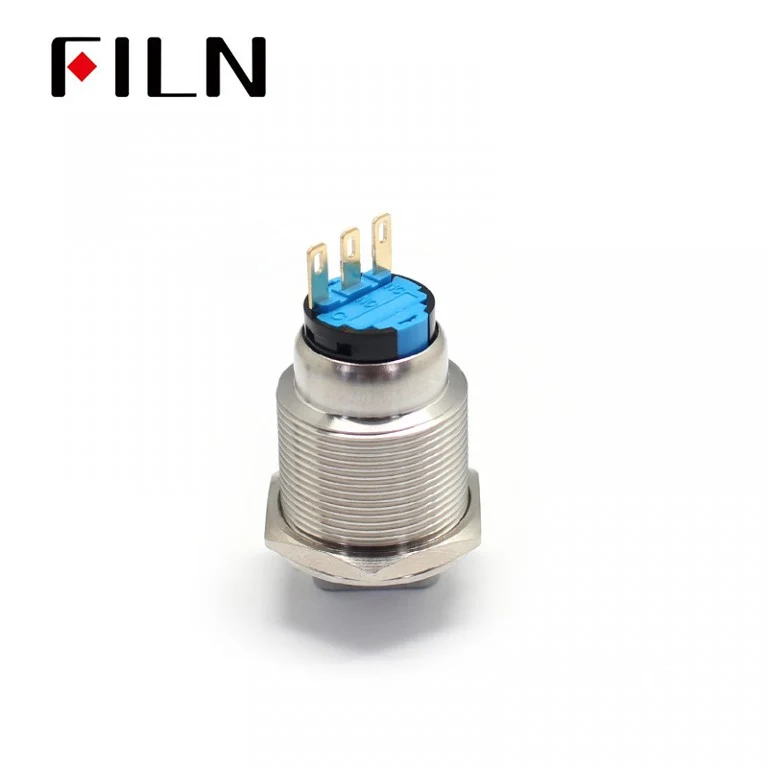

22MM LED Metal Rotary Latching 2 Step Push Button Switch
Détails du produit
| Production Series | FLM22-11RE | Light Guide Button | PC plastic |
| Button Shape | round | Actuator | 304 Stainless steel |
| Button LED Color | Red blue green yellow white | Housing Sleeve | H59 nickel plated brass/304Stainless steel |
| Mechanical Life | The 500 thousand time | Button Pin | H62 copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP65 IK08 | Nut | H59 nickel plated brass |
| Rated Voltage | 36V（DC）250V(AC) | Housing | PA66+GF20% nylon |
| Rated Current | 1A（DC）5A(AC) | Light Source | LED |
| Rated Power | 180W（DC）1250W(AC) | Resistor | Metal film |
| Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
