Vendeur: YUEQING YULIN ELECTRONIC CO., LTD

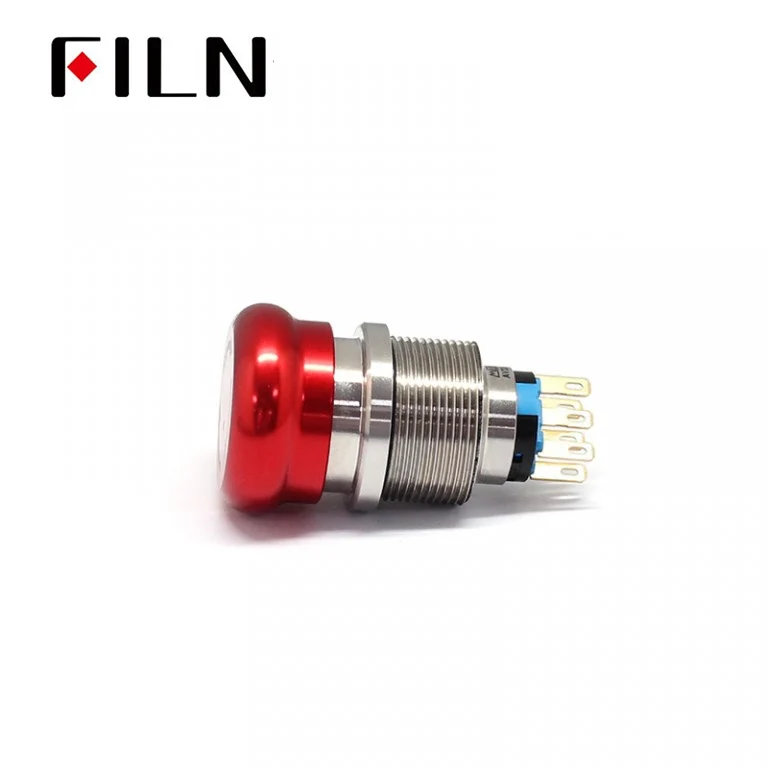

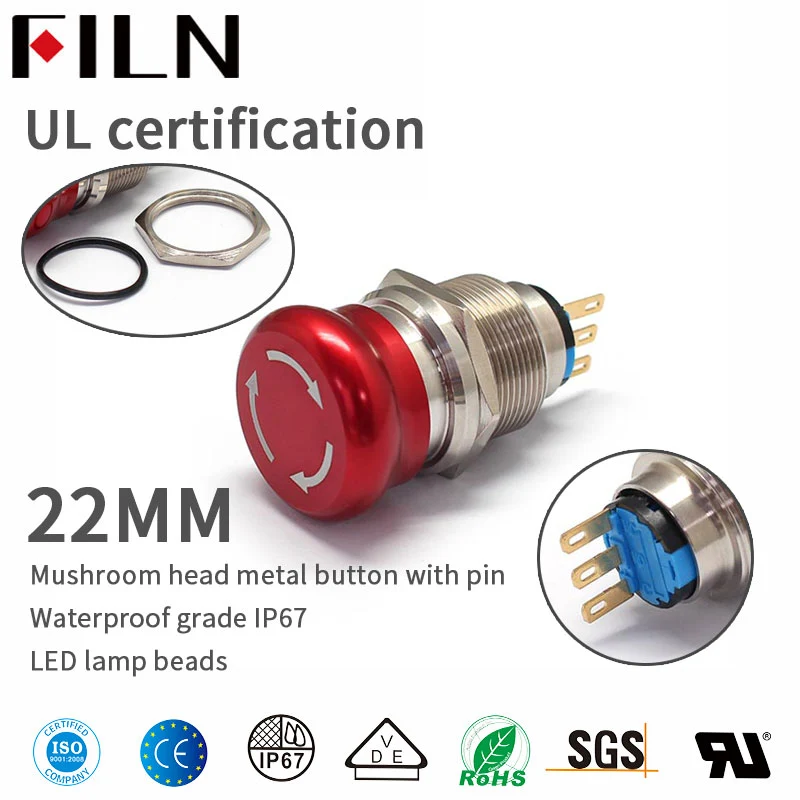

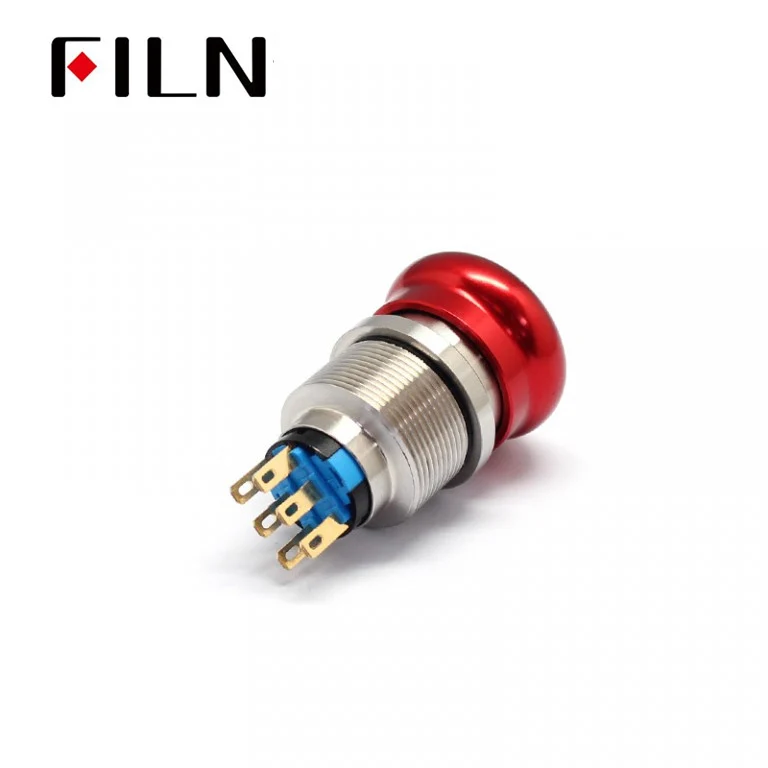

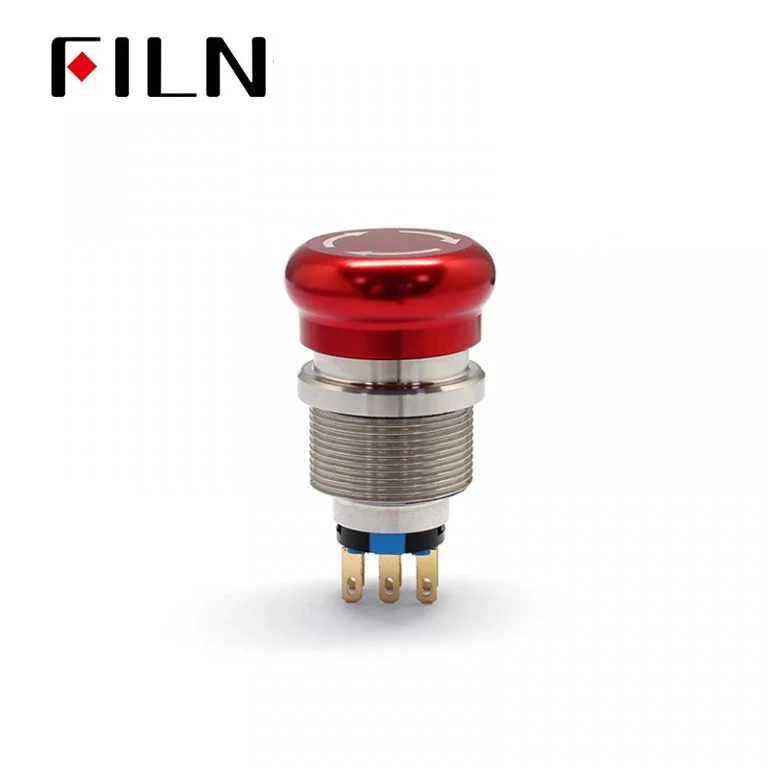

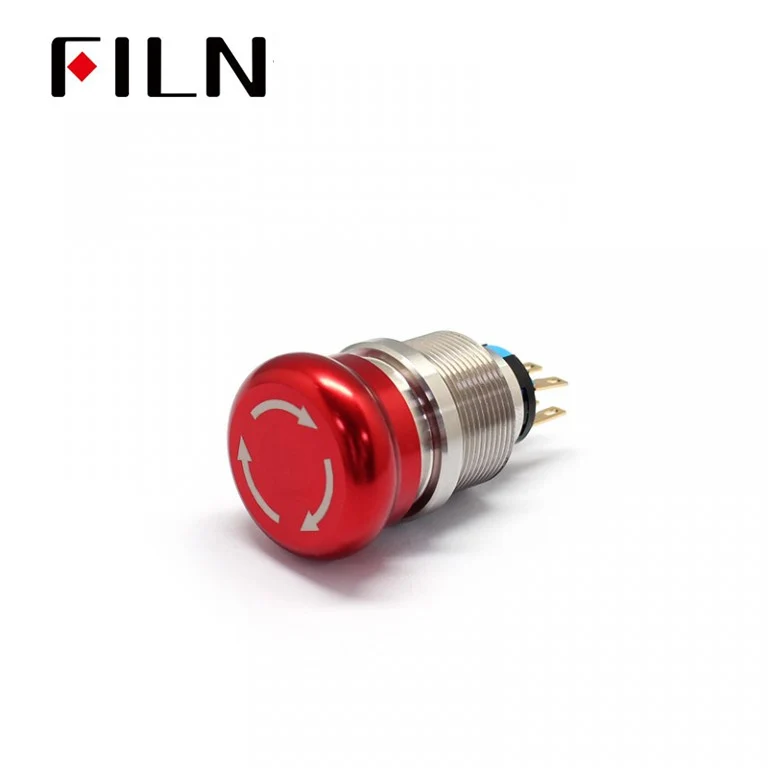

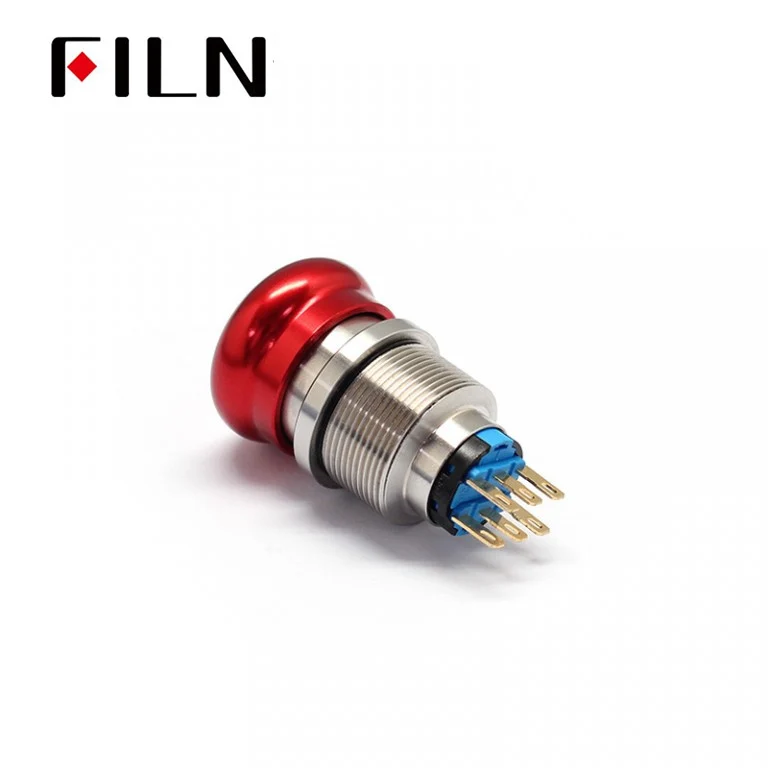

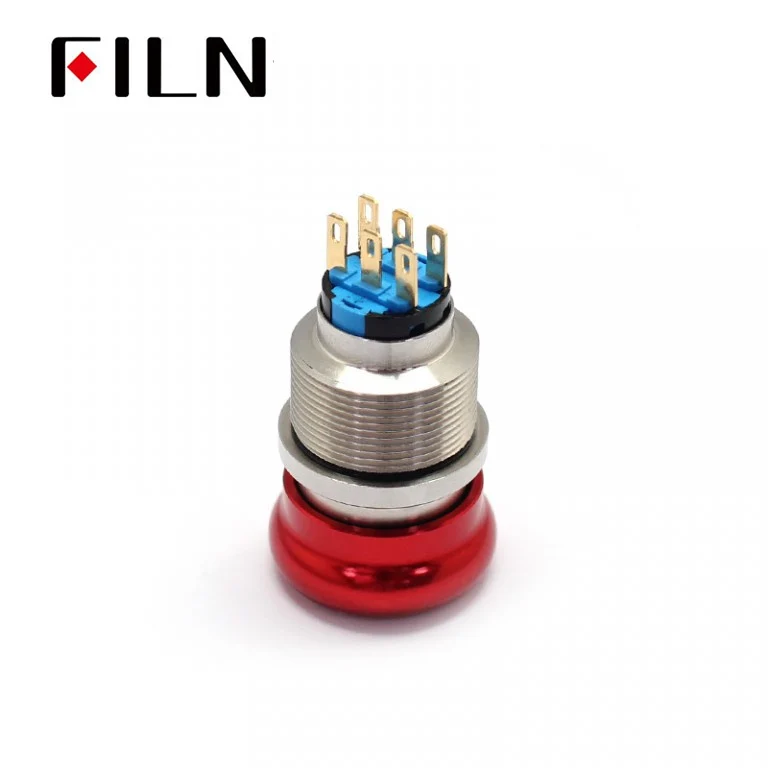

22mm Emergency Stop Button Switch Metal Push Button Switch For A Latching Switch
Détails du produit
| Production series | FLM22-11MJ | Light guide button | PC plastic |
| Button Shape | round | Sctuator | 304 Stainless steel |
| button LED Color | Red | Housing Sleeve | H59 nickel plated brass/304Stainless steel |
| Mechanical Life | The 500 thousand time | Button Pin | H62 copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP67 IK09 | Nut | H59 nickel plated brass |
| Rated Voltage | 36V（DC） 250V（AC） | Housing | PA66+GF20% nylon |
| Rated Current | 1A（DC）0.5A（AC） | Light Source | LED |
| Rated Power | 36W（DC）125W（AC） | Resistor | Metal film |
| Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
