12mm Metal LED Indicator Light with Symbols & Wires | 12-24V
Détails du produit

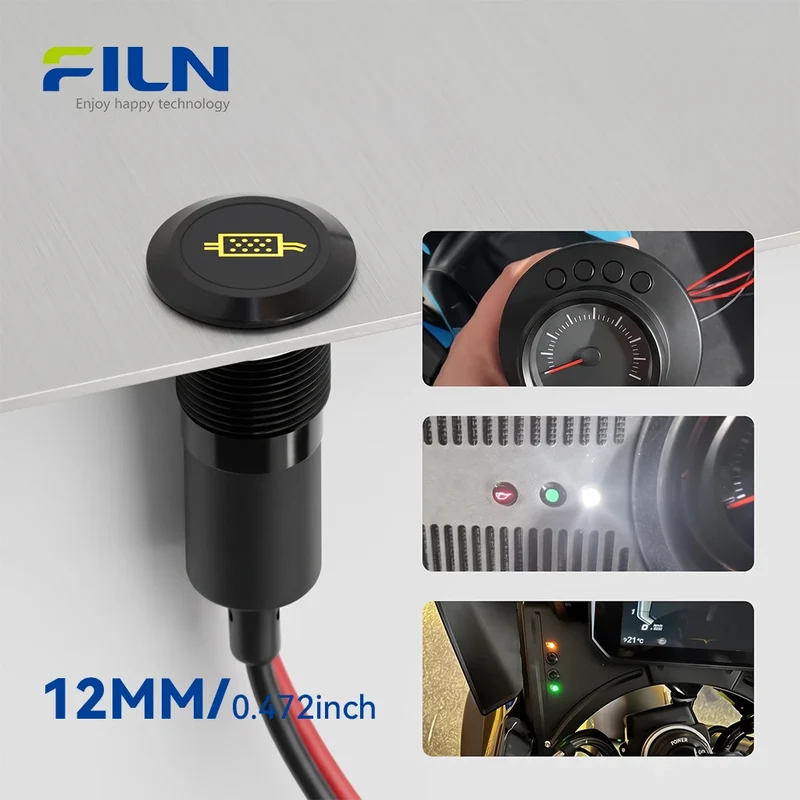

12mm Metal Symbol Indicator Light
Manufactured by FILN, the 12mm metal symbol indicator light and dash light is a high-durability visual signaling component designed for industrial control panels, automotive dashboards, electrical equipment, and OEM applications. It combines a robust metal housing with a laser-etched symbol that provides a clear visual indication of a specific equipment or vehicle function.
The standard configuration features a 12mm mounting hole, 12V DC/AC operation, 2PIN connection, high-brightness LED illumination, and IP65/IP67 protection depending on configuration. Symbol graphics, LED colors, voltage, wire length, and connection methods can be customized for OEM and bulk applications.
Key Takeaways & Engineering Decision Points
- Product Identity: FILN 12mm metal symbol indicator light and dash light, combining a robust metal housing with precise laser-etched graphic symbols.
- Key Specification: Standard 12mm mounting hole, 12V rated operating voltage, and 2PIN circuit configuration.
- Material Engineering: Available in black-plated or silver-plated metal housings according to configuration.
- Protection Rating: IP65 / IP67 ingress protection depending on configuration.
- Mounting: Single-nut threaded barrel mounting for control panels and automotive dashboards.
- Wiring: Available with 20cm pre-wired leads or 2PIN pin terminals.
- LED Colors: Red, Green, Yellow, Blue, White, Dual-Color, and Tri-Color options.
- Applications: Industrial control panels, CNC machinery, electrical equipment, renewable energy systems, marine equipment, and automotive instrument clusters.
- Customization: Custom symbol engraving, wire harnesses, voltage, and other OEM/ODM requirements are supported.
- Ordering Consideration: Buyers should confirm voltage, wiring, head type, housing material, IP rating, and exact symbol graphic before bulk production.
ISO Dashboard Symbol Reference & Meaning
What Does the Symbol Mean?
The laser-etched symbol on a FILN 12mm metal symbol indicator light is a visual code used to identify a specific function, operating condition, warning, or equipment status. Instead of relying only on text, the symbol gives operators a compact and recognizable visual indication on a dashboard or control panel.
Depending on the selected symbol, the indicator may represent lighting functions, engine status, braking, battery or charging status, fuel level, temperature, safety warnings, vehicle controls, or other industrial equipment functions.
The symbol itself is a visual identifier. The electrical circuit determines when the indicator illuminates, while the laser-etched graphic tells the operator what that illuminated signal represents.
Why Does the Symbol Light Up?
When the connected equipment circuit applies the configured voltage to the indicator, electrical current flows through the internal LED and current-limiting resistor. The LED converts electrical energy into visible light.
The light passes through the internal optical lens and illuminates the laser-etched symbol on the indicator head. This creates a direct visual connection between an electrical signal and the equipment status being monitored.
Working Principle:Equipment Status → Electrical Signal → Controlled LED Current → LED Emits Light → Optical Lens → Laser-Etched Symbol Illuminates → Operator Identifies Status
How Should the Symbol Be Interpreted?
The exact meaning depends on the selected symbol and the system in which the indicator is installed. The symbol directory below includes commonly used automotive and industrial graphics such as front fog lights, high beams, engine faults, brake warnings, battery and charging faults, coolant overheating, low fuel, turn signals, parking brake, ABS, TPMS, lane departure, and many other functions.
LED color can provide an additional status cue. In common industrial applications, red is associated with danger or fault, green with normal operation or power ON, yellow/amber with caution or warning, blue with specific operating modes, and white with general or neutral indication. Actual color conventions may vary by equipment manufacturer, industry, country, and application.
| Code | Symbol Name | Code | Symbol Name |
|---|---|---|---|
| 1 | Front Fog Lights | 2 | High Beam Headlights |
| 3 | Engine Start / Power Indicator | 4 | Fire Extinguisher / Fire Warning |
| 5 | Engine Check / Fault Warning | 6 | Side Marker / Low Beam Lights |
| 7 | Seat Belt Unfastened Warning | 8 | Parking Brake (Handbrake) |
| 9 | Brake System Warning / Low Brake Fluid | 10 | Hazard Warning Lights (Double Flashers) |
| 11 | Right Turn Signal | 12 | Coolant Overheating Warning |
| 13 | Low Fuel Level Warning | 14 | Dual Turn Signals |
| 15 | Low Engine Oil Pressure Warning | 16 | Battery / Charging System Fault |
| 17 | Horn Indicator | 18 | Engine Start |
| 19 | Rear Fog Light | 20 | Right Turn Signal |
| 21 | Side Marker Lights (Position Lights) | 22 | Check Engine Light (Exhaust Fault) |
| 23 | General Hazard / Warning Triangle | 24 | Smart Key Indicator |
| 25 | Anti-lock Braking System (ABS) Fault | 26 | Exterior Light Failure Warning |
| 27 | Park Gear (P) | 28 | Neutral Gear (N) |
| 29 | Drive Gear (D) | 30 | Reverse Gear (R) |
| 31 | Brake Pad Wear Warning | 32 | Four-Wheel Drive (4WD) / Differential Lock |
| 33 | Automatic Transmission Fault | 34 | Nitrous Oxide System (NOS) Active |
| 35 | Purge System Indicator | 36 | Critical Danger Warning (Skull Symbol) |
| 37 | Low Beam Headlights | 39 | Engine Control Unit (ECU) Fault |
| 40 | Blower Fan Active | 41 | Frost / Icy Road Warning |
| 42 | Diesel Glow Plug / Pre-Heating Indicator | 43 | Windshield Defrost / Defog |
| 44 | Rear Window Defrost / Defog | 45 | Electronic Stability Program (ESP) / Traction Control |
| 60 | Airbag System Fault (SRS) | 61 | Door Ajar Warning |
| 63 | Overdrive Off (O/D OFF) | 82 | Windshield Washer Fluid Low |
| 90 | Tire Pressure Monitoring System (TPMS) | 98 | Auto Hold / Brake System Fault |
| 169 | Convertible Top Unlocked / Open | 170 | Trunk / Tailgate Open |
| 188 | Parking Sensors / Park Assist | 189 | Headlight Washer System |
| 190 | Fuel Cap Open Warning | 207 | Lighting System Malfunction |
| 209 | Diesel Particulate Filter (DPF) Warning | 214 | ECO Driving Mode Indicator |
| 216 | DPF Regeneration / Filter Status | 217 | Windshield Wiper Fault |
| 218 | Convertible Roof Operation Warning | 219 | Tow Hitch / Trailer Lock Indicator |
| 220 | Headlight Range Control | 221 | Adaptive High Beam / Light Angle |
| 222 | Distance Warning / Forward Collision Warning | 224 | Cruise Control Active |
| 225 | Hill Descent Control (HDC) | 226 | Key Battery Low Warning |
| 227 | Press Brake Pedal Indicator | 228 | Speed Limiter Indicator |
| 233 | Directional Turn Signals | 234 | Service / Maintenance Required (Wrench) |
| 243 | Electric Power Steering (EPS) Fault | 244 | Brake System Service Check |
| 245 | Information Indicator (i) | 246 | Light Sensor / Lane Detection Sensor |
| 247 | Key Not Detected / Invalid Key | 248 | Remote Key Signal / Sensor Warning |
| 249 | Steering Column Lock Warning | 251 | Door / Roof Open Warning |
| 252 | Lane Departure Warning (LDW) | 253 | Hood Open Warning |
| 254 | Adaptive Front-lighting System (AFS) | 255 | Side Airbag / Occupant Sensor Fault |
| 256 | Side Slip / Lane Keep Assist | 257 | Water in Fuel Filter Warning |
| 258 | Suspension System / Shock Absorber Fault | 259 | AUTO Rain-Sensing Wipers |
| 260 | Key Not Found / Engine Immobilizer | - | - |
What is a Symbol Indicator Light?
A symbol indicator light is a specialized industrial and automotive pilot device designed to communicate operational states, warning conditions, or power modes through backlit graphic symbols. These components use an integrated LED light source to transform electrical signals into clear visual cues on equipment control panels and vehicle dashboards.
Request Sample & Get QuotationProduct Overview & Engineering Principles
The FILN 12mm metal dash light and symbol indicator light is engineered for high-reliability visual status monitoring in demanding industrial and vehicular environments. Mechanically, the unit relies on a precision-machined metal housing secured via a threaded barrel and backing nut, providing resistance against mechanical shocks, vibration, and physical impact.
Electrically, it utilizes a high-efficiency LED coupled with a protective current-limiting resistor. When the configured electrical circuit is energized, the LED emits light through the internal optical structure, illuminating the selected laser-etched symbol. Main applications include automated manufacturing machinery, commercial vehicles, marine control desks, and power distribution switchboards.
Quick Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Description | Metal symbol indicator light with pre-wired leads / pin terminals |

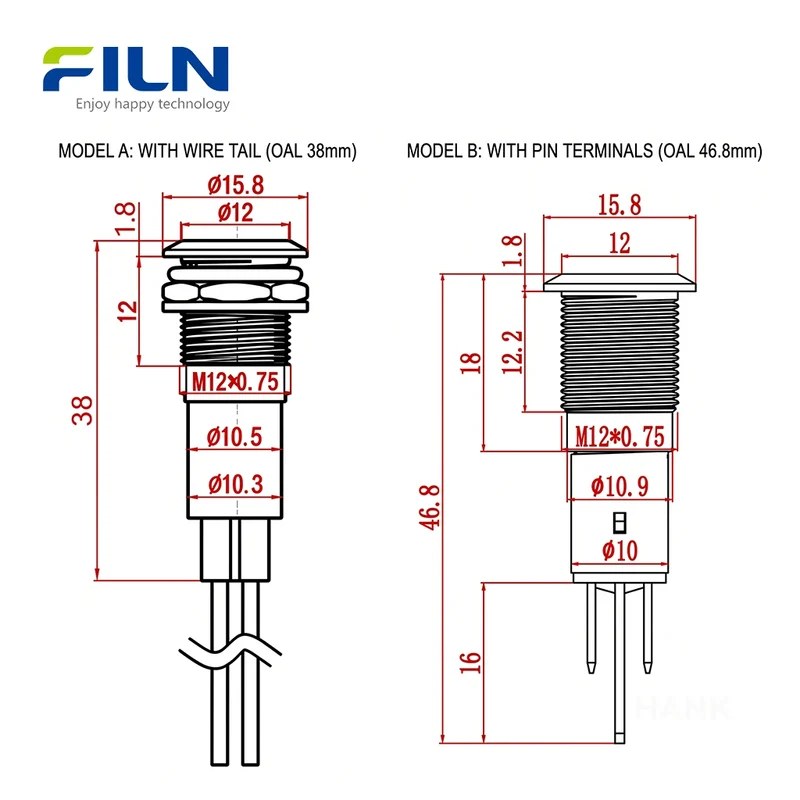

| Indicator Light Model | FL1M-12FW-1 (With wires) / FL1M-12FJ-1 (Pin terminal) |
| Mounting Hole Size | 12mm (Approx. 0.47 inches) |
| Voltage Rating | 12V DC/AC (Customizable across wider voltage ranges) |
| LED Color Options | Red, Green, Yellow, Blue, White, Dual-Color, Tri-Color |
| Waterproof Rating | IP65 / IP67 (Configuration dependent) |
| Wiring Type | 2PIN with 20cm wire leads or 2PIN solder/quick-connect pin terminal |
| Head Type & Surface | Flat head with laser-etched ISO symbol; smooth surface without burrs, oxidation, or cracks |
| Assembly Quality | Head and base securely fitted; zero rotation, detachment, tilt, or deformation |
Performance Parameters
| Performance Metric | Technical Specification |
|---|---|
| Rated Operating Voltage | 3V – 480V DC/AC (Configured for 12V standard application) |
| AC Frequency | 50/60 Hz |
| Rated Operating Current | ≤ 20 mA |
| Rated Power Consumption | Approx. 0.2 W |
| Insulation Resistance | ≥ 100 MΩ (Tested at 500V DC applied between lead wires and housing) |
| Dielectric Strength / Voltage Proof | 1500V – 1800V AC, no breakdown or flashover |
| Operating Life Expectancy | 50,000 to 100,000 hours of continuous operation |
| Ingress Protection Rating | IP65 / IP67 certified environmental sealing |

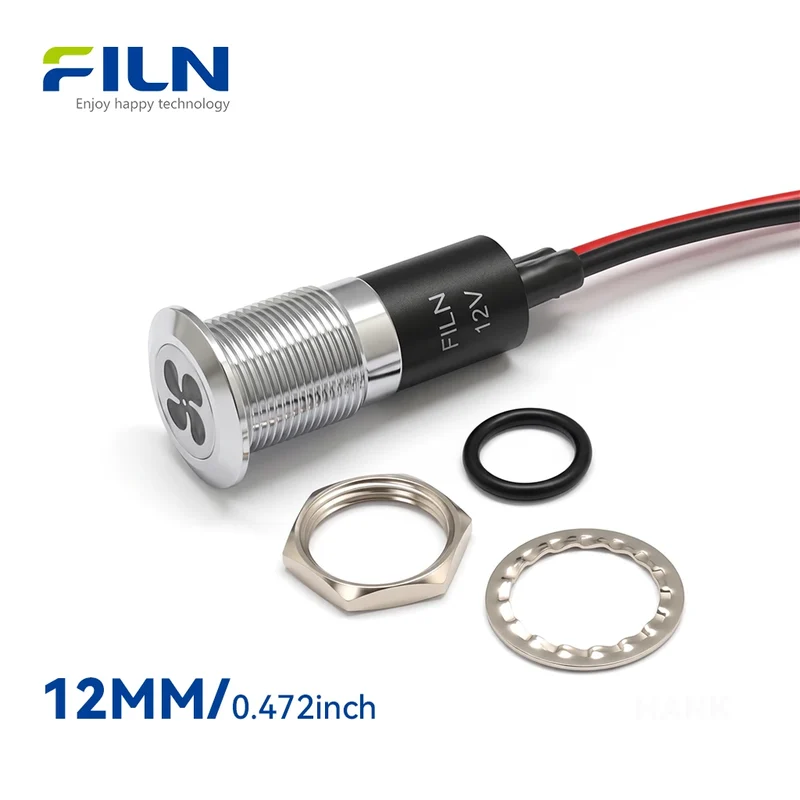

Component Materials & Engineering Purpose
Every material utilized in the construction of the FILN 12mm metal dash light and symbol indicator light is selected to support mechanical durability, electrical safety, and environmental resistance.
| Component | Material | Engineering Purpose |
|---|---|---|
| Shell / Housing | Copper alloy / Black-plated zinc-aluminum alloy | Mechanical strength, impact resistance, and professional finish. |
| Lamp Holder | PA66 | Electrical insulation and thermal stability. |
| Lampshade / Lens | PC | Optical clarity, light diffusion, and impact resistance. |
| Luminescent Source | High-brightness LED | Energy-efficient, long-life illumination. |
| Resistor | Carbon film resistor | Regulates current to protect the LED. |
| Wire / Lead Wire | PVC insulated copper wire | Flexible and insulated electrical connection. |
| Nut | Copper alloy | Secure threaded panel locking. |
| O-Ring | Silicone / Silica gel | Waterproof and dustproof sealing. |
| Lock Washer | Stainless steel | Helps prevent loosening from vibration. |
Environmental Performance Specifications
| Environmental Test / Parameter | Specification / Test Condition |
|---|---|
| Application Range | General use range for FILN metal indicator light series |
| Part Name | Metal indicator light / Symbol dash light |
| Operating & Storage Temperature | -40℃ ~ +80℃ |
| Operating Relative Humidity | ≤85% at +40℃ |
| High Temperature Test | 96 hours at 80±2℃ |
| Low Temperature Test | 96 hours at -40±2℃ |
| Constant Temperature & Humidity Test | 96 hours at 40±2℃, 90%~95%RH |
| Temperature Cycling Test | Alternate between -40℃ (30min) and 85℃ (30min), 5 cycles total |
LED Specification & Electro-Optical Characteristics
The internal semiconductor LED chip is engineered to provide consistent symbol illumination and long operational life.
| Parameter Category | Test Condition / Limit | Specification Value |
|---|---|---|
| Absolute Maximum Rating | Maximum Forward Current (IFP) | 20 mA |
| Reverse Voltage (VR) | 5 V | |
| Power Dissipation (PD) | 60 mW | |
| Operating Temperature (TOPR) | -40°C ~ +80°C | |
| Storage Temperature (TSTG) | -40°C ~ +100°C | |
| Electro-Optical Characteristics (Ta = 25°C) | Forward Voltage (VF) [IF = 20 mA] | 2.8 V (Min.) ~ 3.2 V (Max.) |
| Reverse Current (IR) [VR = 5 V] | 5 µA (Max.) | |
| Viewing Angle (2θ₁/₂) [IF = 20 mA] | 60° | |
| Luminous Intensity (Iv) [IF = 20 mA] | 500 mcd (Min.) ~ 800 mcd (Max.) | |
| Recommended Forward Current (IF) | 20 mA | |
| Dominant Wavelength (λd) [IF = 20 mA] | 520 nm ~ 525 nm | |
| Junction Temperature (Tj) | Max. 125°C at IF = 20 mA | |
| Thermal Resistance (RJP) | 8°C/W |
Standard Test Conditions
| Atmospheric Parameter | Standard Measurement Range |
|---|---|
| Ambient Temperature | 5℃ ~ 35℃ |
| Relative Humidity | 45% ~ 85% |
| Air Pressure | 86 ~ 106 kPa (860 ~ 1060 mbar) |
Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement: ±15%, tolerance of voltage measurement: ±0.1V.
Applications by Industry
Metal indicator lights utilize high-strength metal housings and are designed for industrial and advanced commercial environments where mechanical durability, environmental resistance, and clear visual status indication are important.
1. Industrial Automation & Machinery Manufacturing
Control panels for CNC machinery, production lines, hydraulic systems, and pneumatic equipment use indicator lights to communicate power, operating, warning, and fault conditions.
2. Outdoor Power & Renewable Energy Systems
EV charging equipment, outdoor distribution boxes, solar power systems, and PV equipment can use metal indicator lights for equipment status monitoring.
3. Commercial Vehicles & Marine Equipment
Commercial vehicles, construction machinery, marine control panels, and ship instruments use dash lights to display oil pressure, coolant temperature, brake faults, lighting status, and other conditions.
4. Vending & Public Access Equipment
Vending machines, ticketing machines, access control systems, intercom panels, and public-facing equipment use compact metal indicators for status communication.
5. Medical & Food Processing Equipment
Food processing equipment and medical sterilization systems can use indicator lights to differentiate operating stages such as heating, sterilizing, exhausting, or general equipment status.
LED Indicator Color Meanings and Application Guide
Indicator light colors provide an additional visual cue for operational states on control panels and automotive dashboards.
| Color | Common Meaning | Typical Status | Typical Application |
|---|---|---|---|
| Red | Danger / Stop | Fault / Emergency | Brake warning, emergency stop |
| Green | Normal / Safe | Running / Active | Power ON, normal status |
| Yellow / Amber | Caution / Alert | Warning / Standby | Low fuel, engine check |
| Blue | Mode / Status | Charging / Auxiliary | EV charging, high beams |
| White | Neutral / Power | Standby / General | General status |
Note: Indicator light color conventions can vary by equipment manufacturer, control-system design, industry standard, country, and application.
Installation Guide
- Prepare Tools: Gather a drill or punch press, caliper, appropriate 12mm drill bit, wiring tools, and fastening tools.
- Panel Preparation: Measure and mark the target installation location.
- Drill Mounting Hole: Drill a precise 12mm circular hole and remove burrs.
- Position O-Ring: Place the silicone sealing ring onto the threaded barrel.
- Insert Indicator: Insert the indicator from the front of the panel.
- Secure Locking Nut: Tighten the rear nut to secure the indicator and compress the O-ring.
- Verify Symbol Orientation: Align the laser-etched symbol correctly.
- Connect Wiring: Complete the electrical connection with power disconnected.
- Final Inspection: Verify mechanical firmness, electrical continuity, and seal integrity.
Wiring Guide & Connection Methods

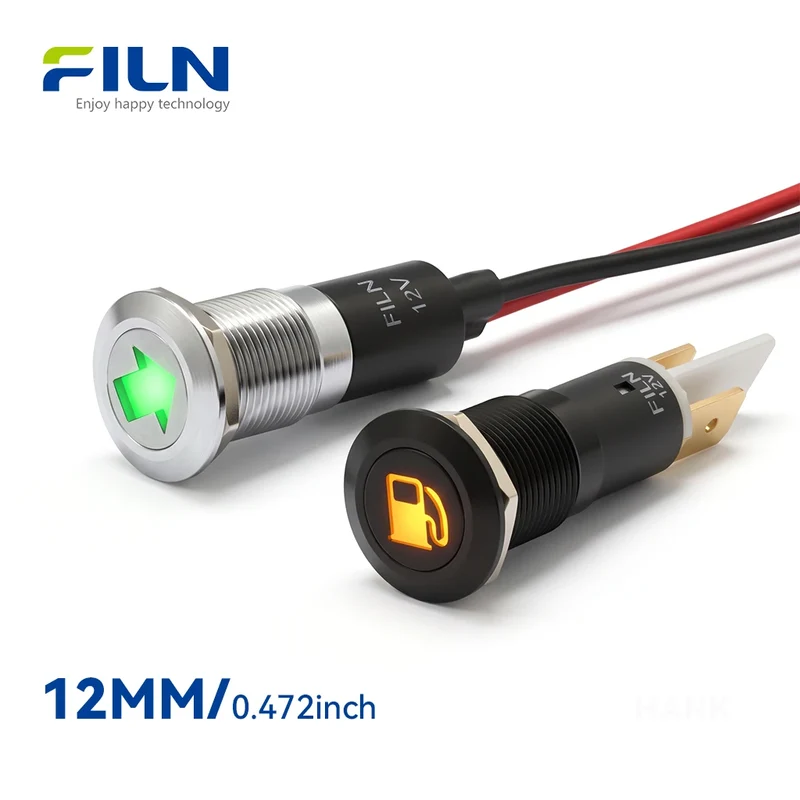

The FILN 12mm metal symbol indicator light is available in two wiring configurations: pre-wired cable leads and pin terminals.

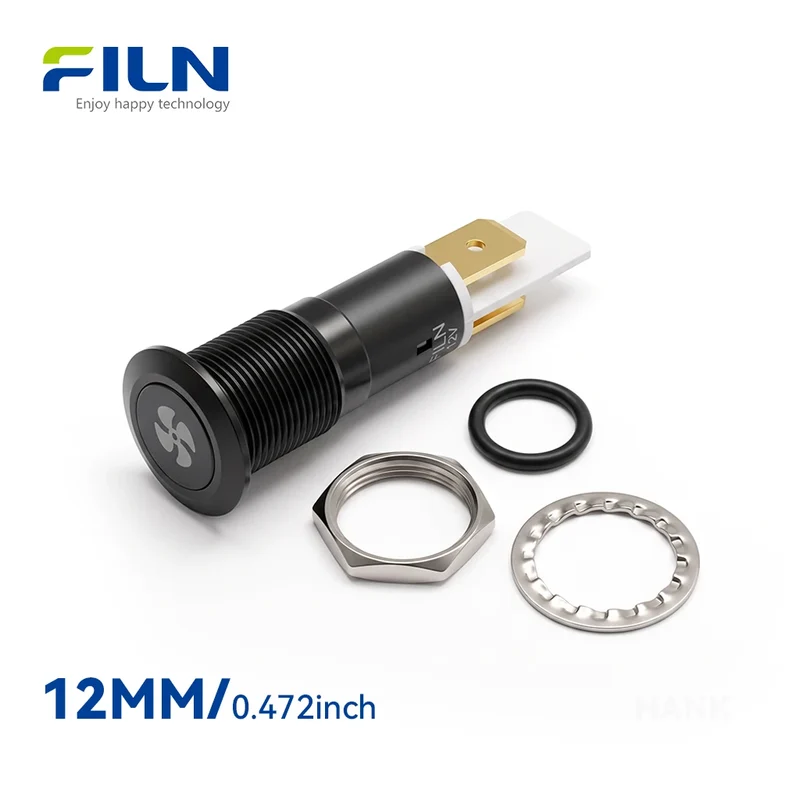

- Pin Terminal Indicators (FL1M-12FJ-1): Two exposed electrical pins can be connected using quick-connect receptacles or direct soldering.

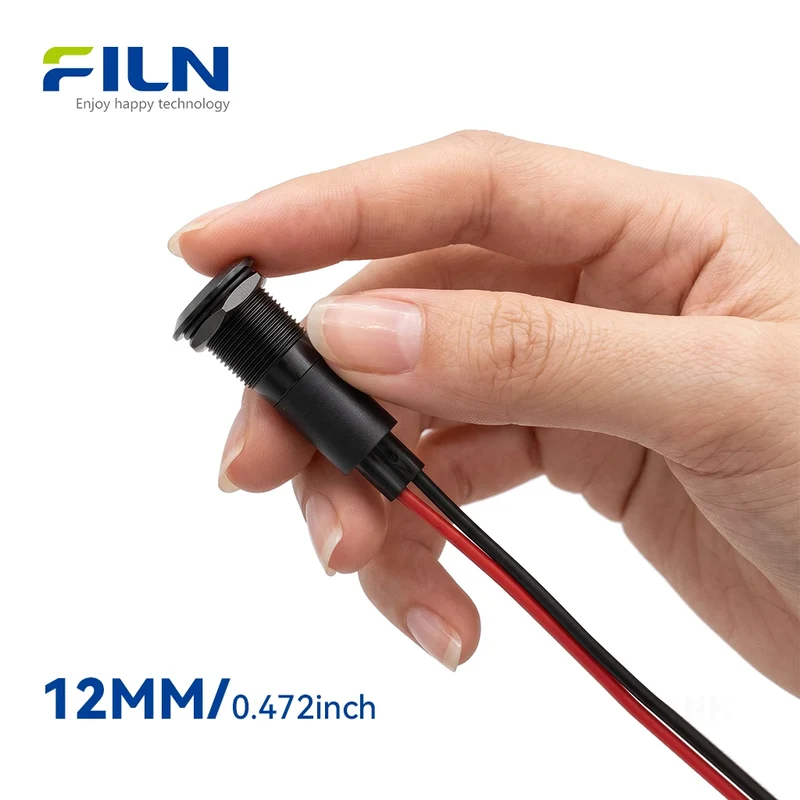

- Pre-Wired Indicators (FL1M-12FW-1): Supplied with 20cm PVC insulated wire leads. Custom wire lengths are available for OEM requirements.
CRITICAL SAFETY NOTICE: Always disconnect electrical power before performing wiring operations.
| Wiring Type | Advantages | Limitations |
|---|---|---|
| Pin Terminal (FL1M-12FJ-1) | Compact rear profile and removable connection. | Requires connectors or soldering. |
| Pre-Wired (FL1M-12FW-1) | Ready-to-connect 20cm wire leads. | Standard wire length is 20cm. |
Industry Knowledge Center
How Indicator Lights Work: A controlled electrical current passes through the internal LED and series resistor. When energized, the LED emits photons through the optical lens, illuminating the laser-etched symbol.
Why Material Selection Matters: Metal housings provide mechanical rigidity and structural durability for industrial and vehicular applications.
Industry Standards & Compliance: FILN manufacturing processes align with ISO9001 quality management systems and products are supplied for international markets with applicable certifications.
Maintenance & Troubleshooting: Periodically inspect mounting tightness, terminal condition, and operating voltage. If faint phantom illumination occurs, residual leakage current from electronic control outputs should be checked.
Buyer Decision Guide & RFQ Checklist
- Mounting Hole: 12mm.
- Voltage: Standard 12V; confirm AC or DC requirements.
- Housing: Confirm required metal material and finish.
- IP Rating: Confirm IP65/IP67 requirement.
- Wiring: Select pre-wired leads or pin terminals.
RFQ Checklist
- Product Type & Model: FL1M-12FW-1 / FL1M-12FJ-1
- Mounting Hole: 12mm
- Voltage: 12V DC/AC
- LED Color: Red, Green, Yellow, Blue, White, Dual, Tri
- ISO Symbol Code / Custom Graphic
- Housing Material & Finish
- Wiring Method & Lead Length
- Waterproof Requirement
- Order Quantity & Target Market
FILN Manufacturing and Engineering Capabilities
As a dedicated industrial manufacturer, FILN provides engineering, R&D, custom production, and OEM/ODM support for global B2B customers.
- R&D and Engineering: Support for custom symbol laser etching, wire harnesses, and housing dimensions.
- OEM & ODM: Custom packaging, private labeling, operating voltage, and symbol configurations.
- Production: 10,000 m² facility with 20+ advanced automated production lines.
- Quality Control: Electrical, waterproof, and thermal testing capabilities.
- Global Supply: Sample, small-batch, and mass-production support.
Factory Direct Supply & Company Profile
Yueqing Yulin Electronic Co., Ltd., operating under the FILN brand, is located in Wenzhou, Zhejiang. Established as a professional electrical switch manufacturer integrating R&D, production, and sales, FILN products are supplied to international markets. The company operates a modern 10,000 m² facility with 20+ production lines and an independent testing laboratory.
- Production Capabilities: Indicator lights, push button switches, rocker switches, toggle switches, and small electrical components.
- Quality System: ISO9001 and applicable international certifications.
- Export Markets: North America, Europe, Asia, and Oceania.
- Manufacturing Advantages: Engineering support, custom solutions, and rapid technical communication.
Explore our complete metal indicator light lineup: View All Metal Indicator Light Products
Official Website: www.filn.com | Direct Inquiry Email: [email protected]
Frequently Asked Questions
Why does a 12V LED indicator light illuminate?
When the configured electrical circuit supplies voltage, controlled current flows through the internal resistor and LED. The LED emits light through the optical lens and illuminates the laser-etched symbol.
What does the symbol on the indicator mean?
The symbol identifies the equipment function or status represented by the electrical circuit. FILN supports a wide range of automotive and industrial symbols and can provide custom laser-etched graphics.
What is the required panel cutout size?
The required mounting hole diameter is 12mm, approximately 0.47 inches.
What materials are available?
FILN offers nickel-plated brass, stainless steel, and black or silver-plated zinc-aluminum alloy configurations.
Can custom symbols be laser-etched?
Yes. FILN provides OEM customization for standard automotive and industrial symbols as well as customer-specified graphics.
How long are the standard wire leads?
Pre-wired FL1M-12FW-1 models are supplied with 20cm PVC insulated wire leads. Custom lengths can be requested for OEM applications.
How can phantom illumination be prevented?
Phantom illumination can occur when residual leakage current from solid-state control outputs flows through an LED indicator. A suitable parallel bleeder resistor can be used to shunt the residual current when appropriate.
How do I request bulk pricing or technical data?
Contact FILN engineering and sales at [email protected] for quotations, technical data sheets, samples, and 3D CAD model requests.
