Vendeur: FILN Shopify

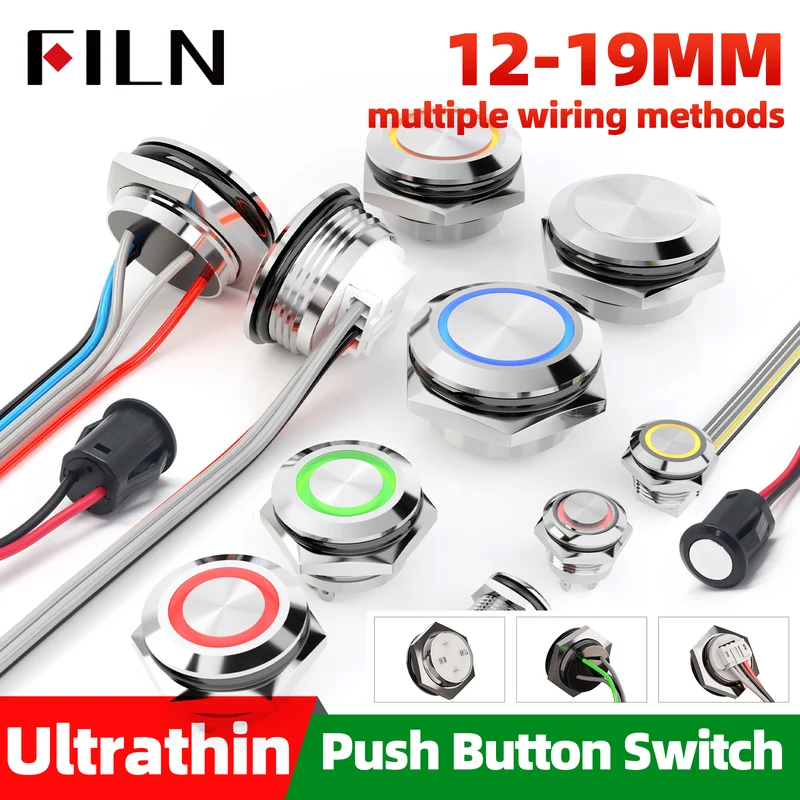

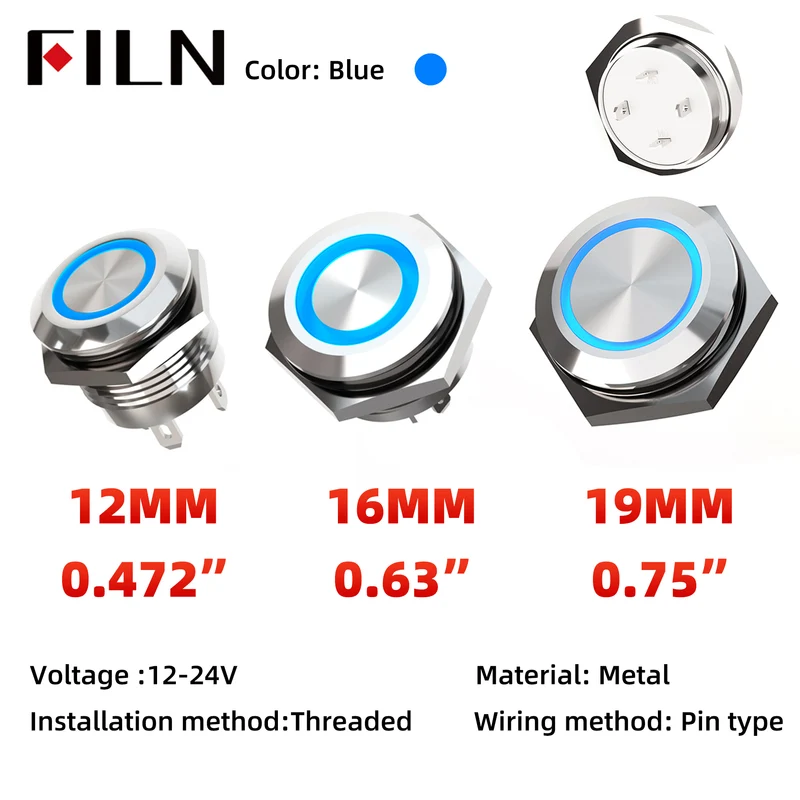

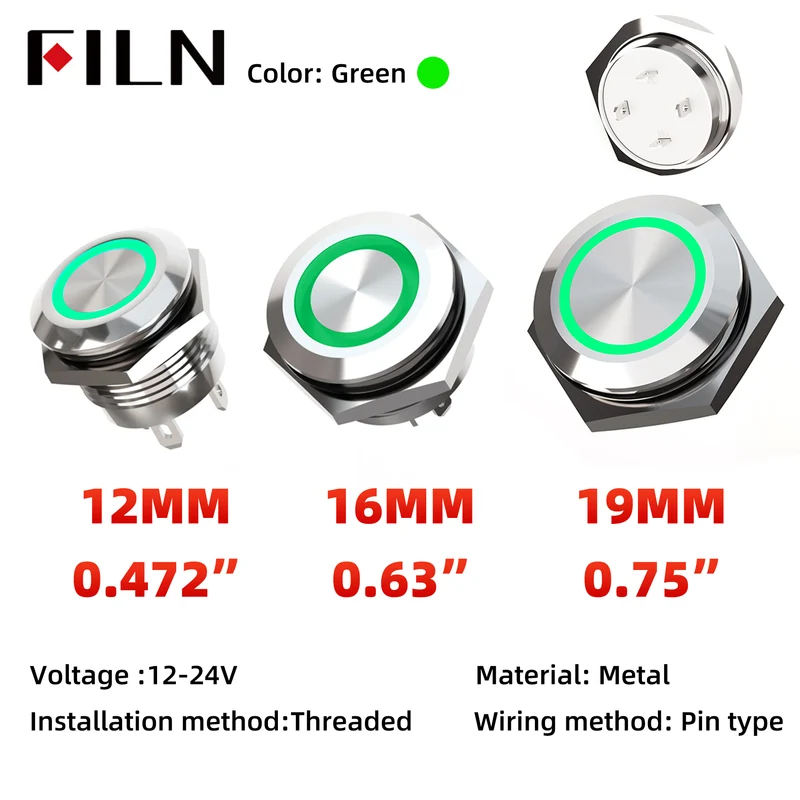

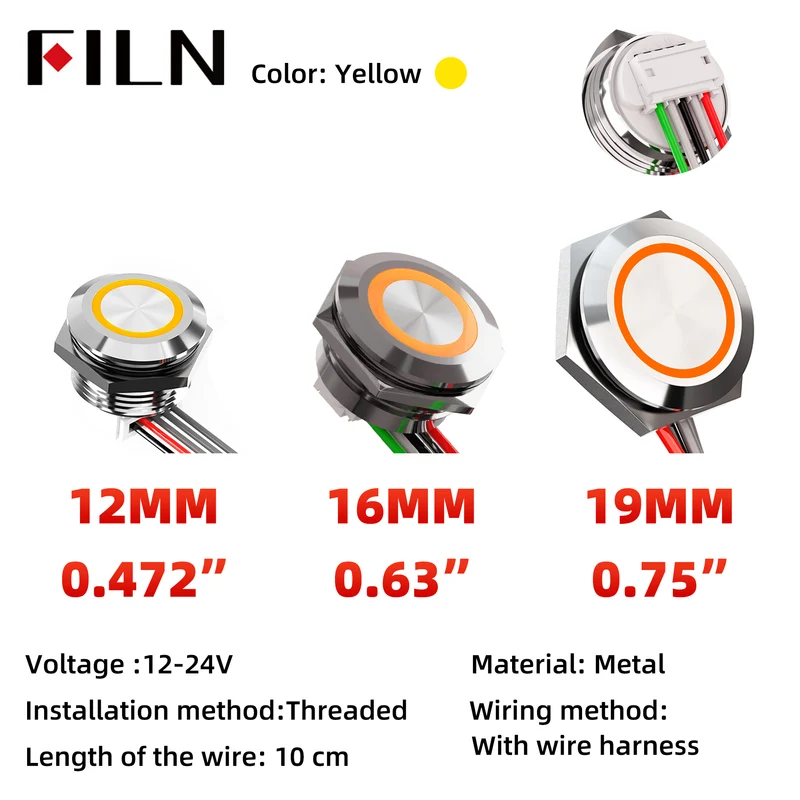

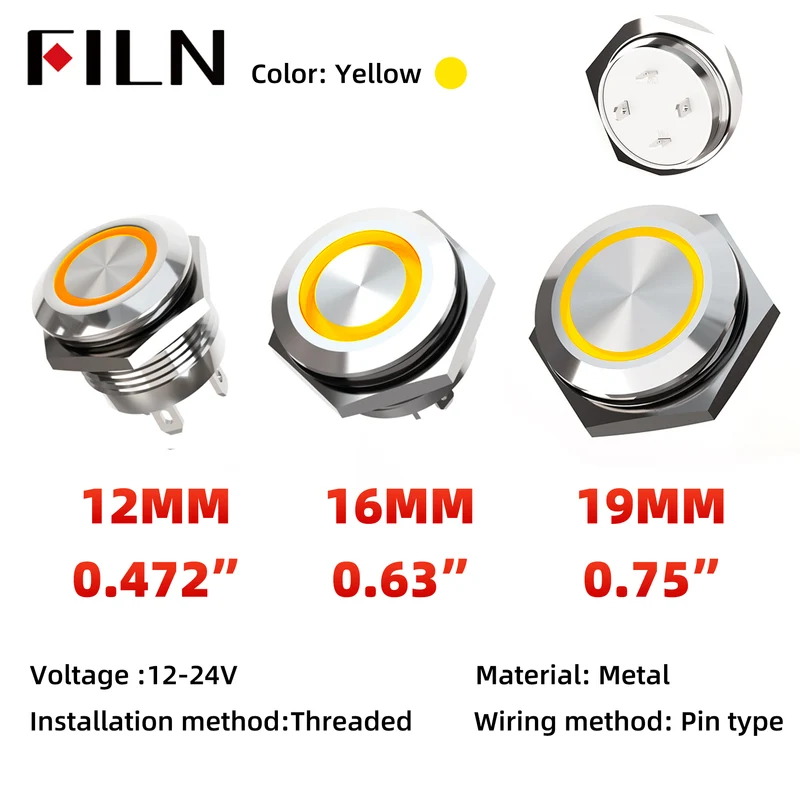

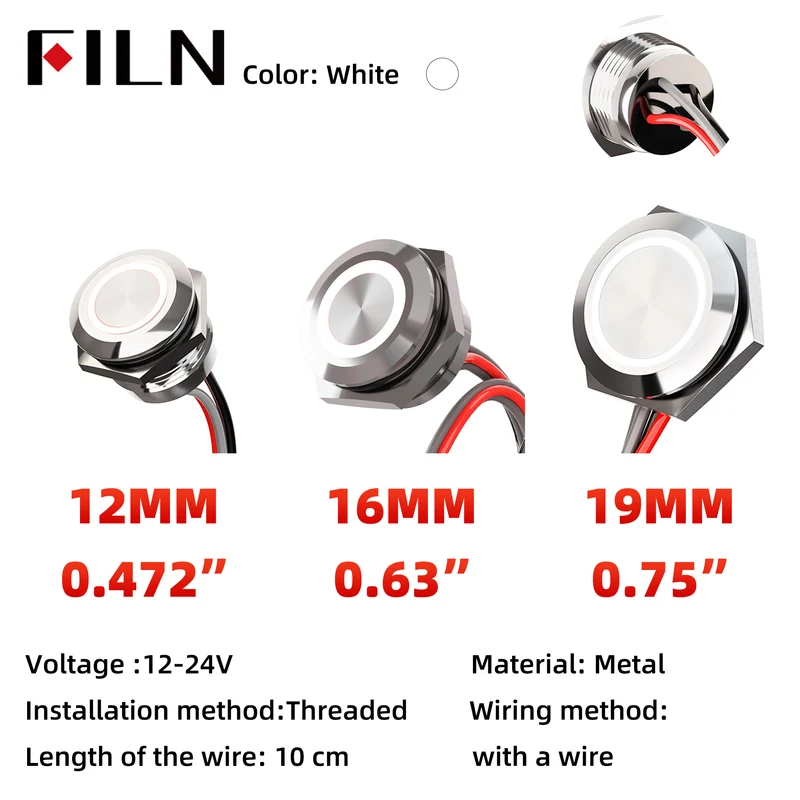

12-19MM Metal Ultra-thin Momentary Push Button Switch with Multiple Wiring Methods 12-24V
Détails du produit
| Item | Parameter |
|---|---|
| Rated Voltage | 12V DC |
| Rated Current | 50mA DC |
| LED Voltage Rating | 12V–24V |
| LED Rated Current | ≤20mA |
| Rated Power | 0.6W (DC) |
| Insulation Voltage Resistance | 250V |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Mechanical Life | 500,000 cycles |
| Electrical Life | 200,000 cycles (12V / 50mA) |
| Operating Temperature | -25°C to +85°C |
| IP Rating (Head) | IP67 / IK08 |

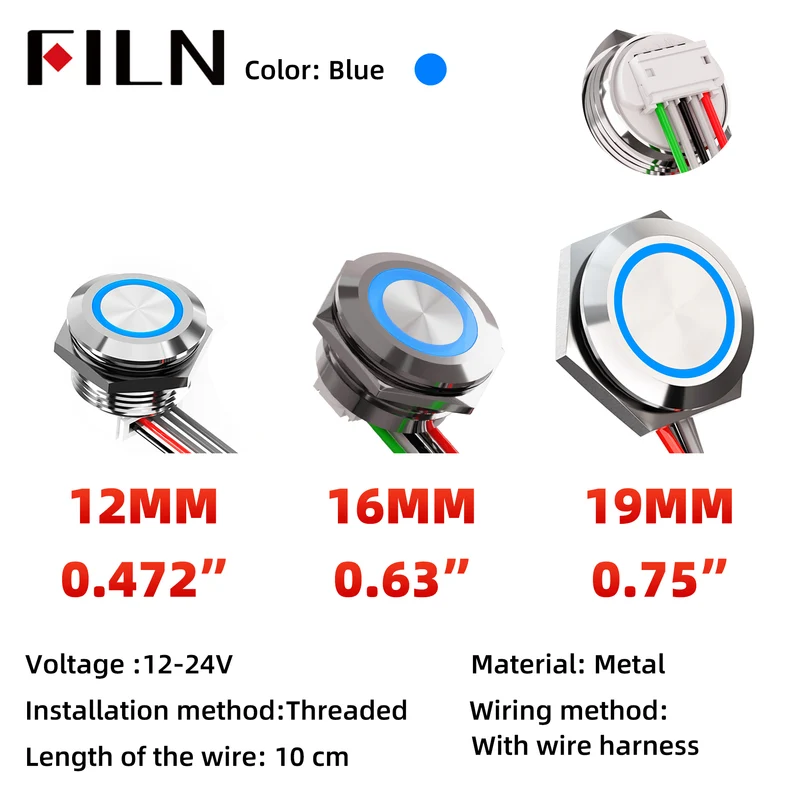

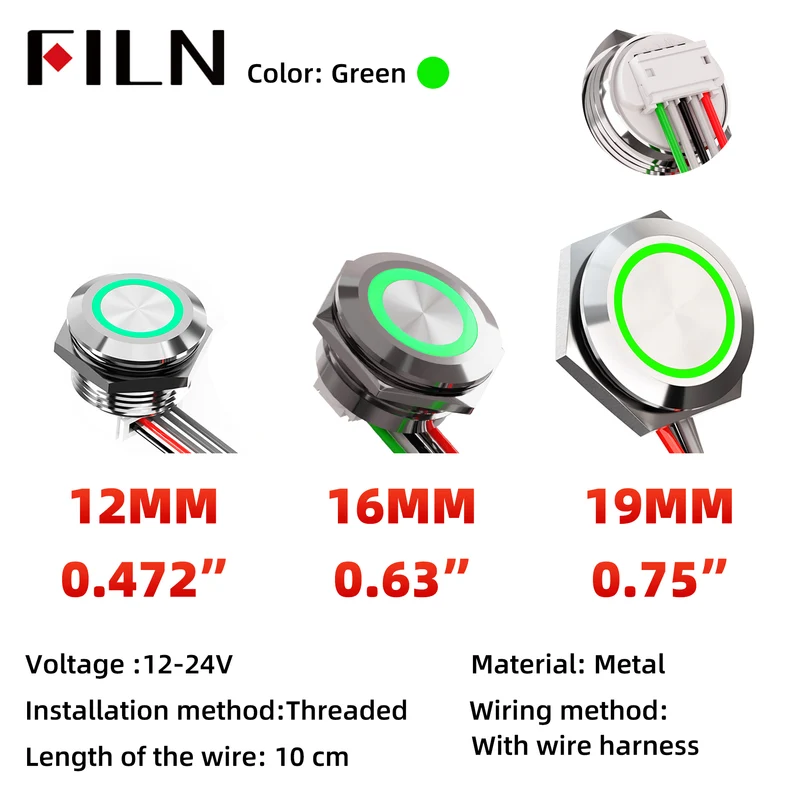

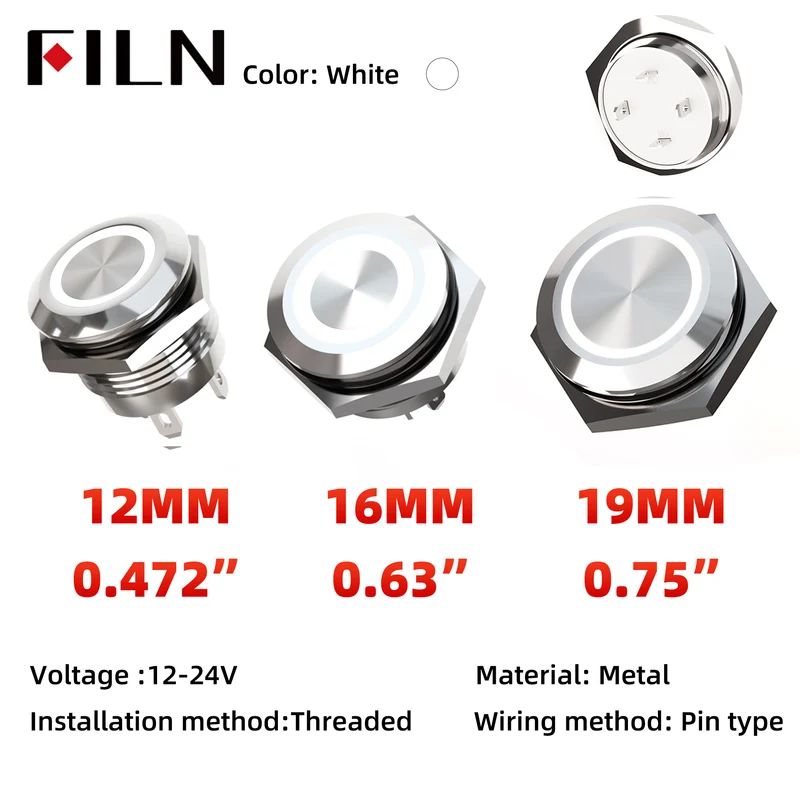

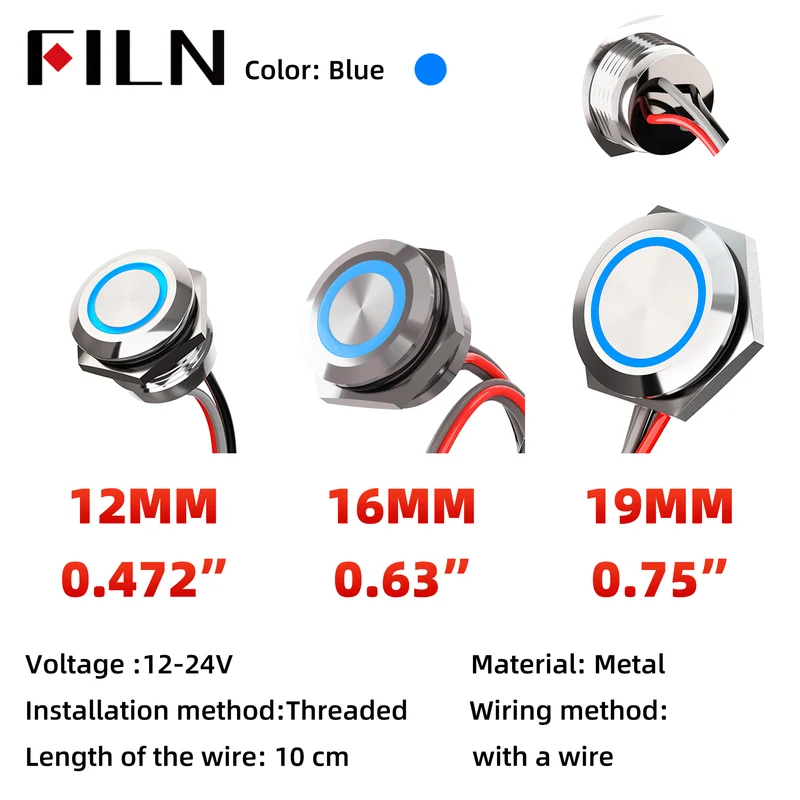

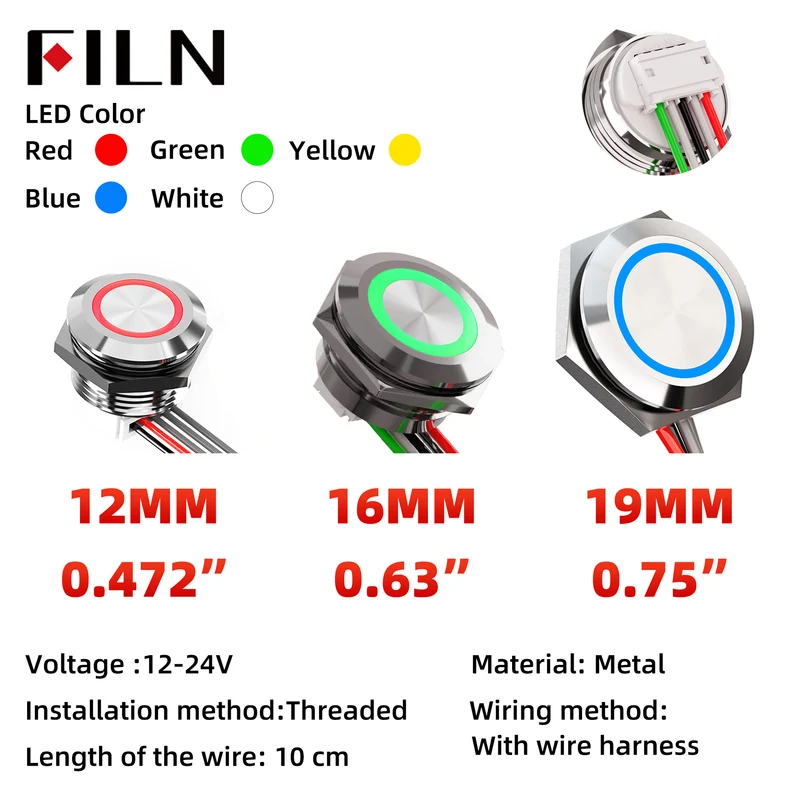

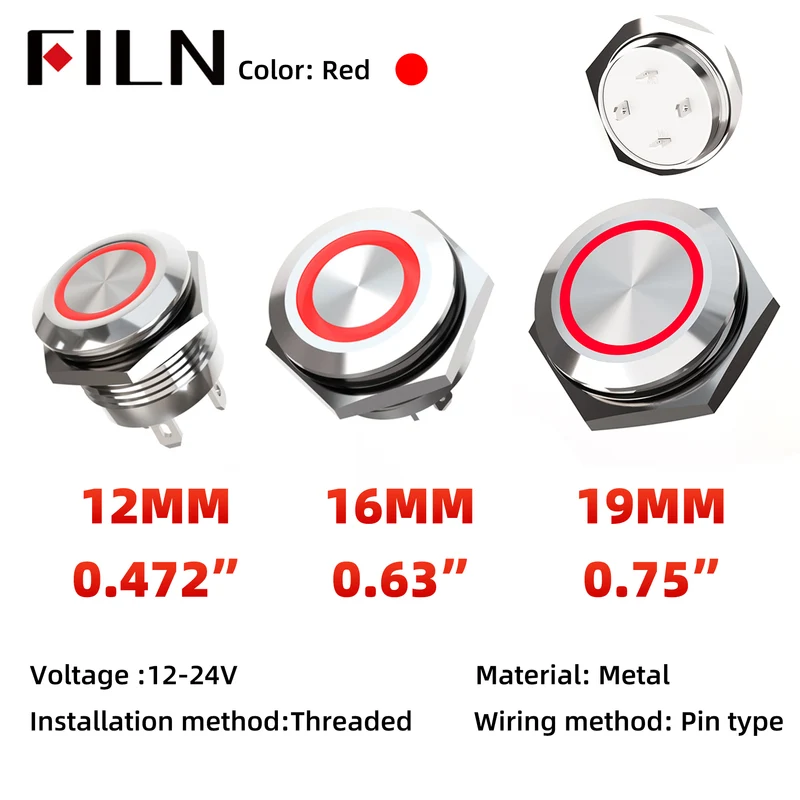

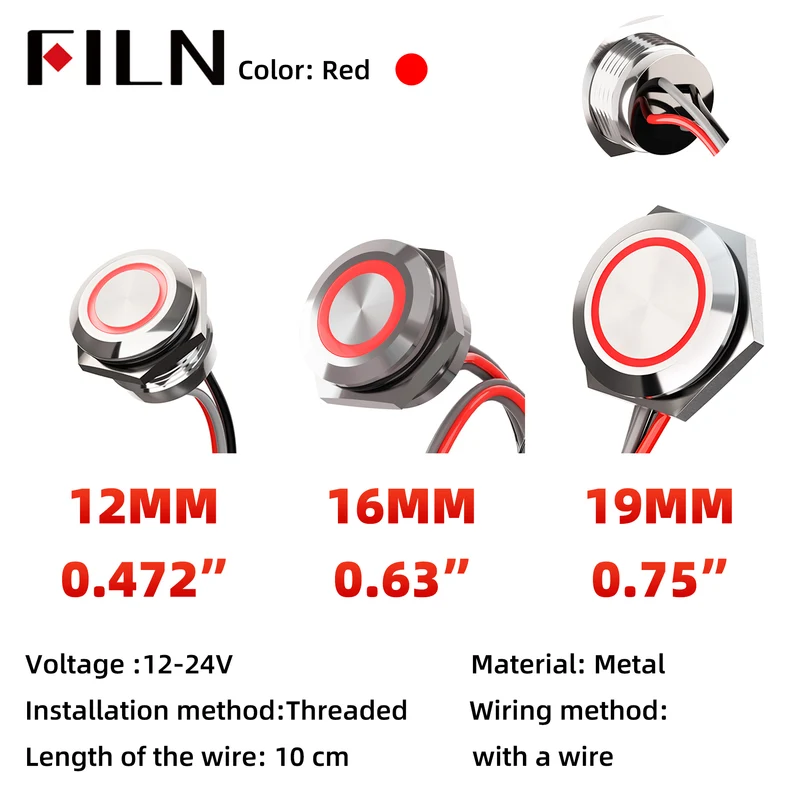

| LED Color | Red / Blue / Green / Yellow / White (R / B / G / Y / W) |
